Product Description

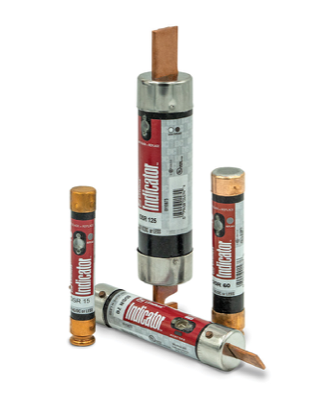

Littelfuse Industrial Business Unit IDSR Series Fuse;HldReq; 200kA AC, 20kA DC; RK5;1.4A;600 VAC;600 VDC; Ind; Slow Blow; Cylindrical, Alarm Indicating
Cylindrical Fuse • Mounting Type: Requires Holder • Fuse Type: Cartridge • Current Rating (Amps): 1.4A • Voltage Rating - AC: 600 VAC • Voltage Rating - DC: 600 VDC • Response Time: Slow Blow • Features: Indicating • Class: RK5 • Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC • Package / Case: Cylindrical, Alarm Indicating
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuses |
| Product Sub Category | Cylindrical Fuse |
| Series | IDSR Series |
| Catalog Part Number | IDSR01.4 |
| Ordering Part Number | IDSR01.4T |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 1.4A |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 600 VDC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CE, CSA, UL |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Alarm Indicating |
| Size / Dimension | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) |
Series Features
Class RK5 Fuses IDSR Series 600 V ac • Dual Element • Time Delay • 1–600 A
Series DescriptionThe time-delay, dual-element IDSR series fuses combine a 600 V dc capability with indication to provide an ideal solution for many dc applications. These fuses offer a patented, state-of-the-art, solid-state design with maximum reliability and superior performance characteristics.
- Excellent short-circuit protection: Improve safety through faster response to fault currents
- Dual-element design: Provides advanced short circuit and overload protection
- Current limiting: Restricts fault currents to provide a high degree of circuit protection
- Visual Blown Fuse Indication: Indication window turns black allowing fast and easy identification of a blown fuse
Dc circuits, Solar inverters, Motors, Transformers and solenoids, Fluorescent lighting
