Product Description

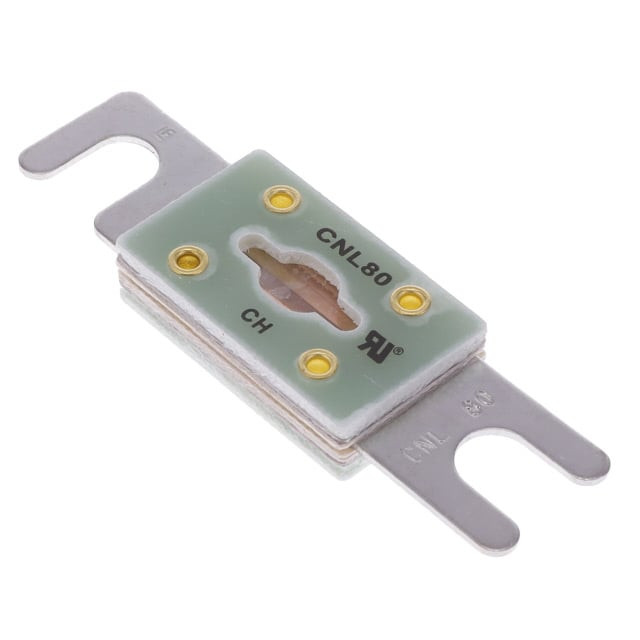

Littelfuse Industrial Business Unit CNL Series Fuse; Indicating; 80A; Bolt Mount; 32 VAC; 32 VDC; Fast Blow; Indicating
Fuse • Mounting Type: Bolt Mount • Fuse Type: Fuse Strip • Current Rating (Amps): 80A • Voltage Rating - AC: 32 VAC • Voltage Rating - DC: 32 VDC • Response Time: Fast Blow • Features: Indicating • Breaking Capacity @ Rated Voltage: 2.5kA • Package / Case: Cylindrical, Blade Terminal (Bolt)
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuse |
| Product Sub Category | Automotive Fuse |
| Series | CNL Series |
| Catalog Part Number | CNL080 |
| Ordering Part Number | 0CNL080.V |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Bolt Mount |
| Fuse Type | Fuse Strip |
| Current Rating (Amps) | 80A |
| Voltage Rating - AC | 32 VAC |
| Voltage Rating - DC | 32 VDC |
| Response Time | Fast Blow |
| Applications | Lift Trucks |
| Features | Indicating |
| Approval Agency | UR |
| Breaking Capacity @ Rated Voltage | 2.5kA |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
Series Features
Series: CNL 32V Stud Mounted Lift Truck Fuse
Series DescriptionCNL fast-acting and CNN very fast acting fuses are recommended for use on battery operated lift trucks and other low voltage battery operated equipment.
- Window shows fuse status
- Up to 2,500 A interrupting rating
- Compact size saves space
- RoHS compliant and lead (Pb) free
Lift trucks, Scissor lifts, Pallet movers, Low voltage battery powered equipment
