To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | KLK003S |
| Description | Industrial Fuse; 3A; Midget; Fast; 10x38; Pack of 10; 600 VAC / 500 VDC; UL/CSA/CE |
| Datasheet | Download Datasheet |

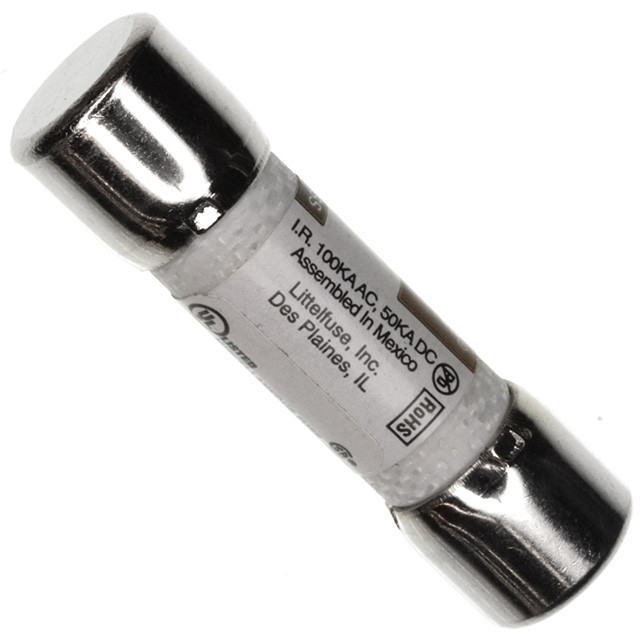

The Littelfuse KLK003S is a 3 A fast-acting midget fuse, rated 600 VAC / 500 VDC.
A midget fuse is a 13/32 in diameter supplementary fuse (most are 1-1/2 in long), for protecting equipment and control circuits behind branch-circuit protection rather than as branch protection itself. A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge.
Interrupting rating: 100 kA @ 600 VAC (200 kA Littelfuse self-certified); 50 kA @ 500 VDC.
Construction: 13/32 x 1-1/2 in (10.3 x 38.1 mm); ferrule terminals.
It is UL Listed, CSA certified and CE marked (UL file E10480). Standards: UL 248-14.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | KLK |
| Current Rating (A) | 3 |
| Size | 13/32 x 1-1/2 in (10.3 x 38.1 mm) |
| Speed | Fast-Acting |
| UL Class | Midget (supplementary) |
| Voltage Rating | 600 VAC / 500 VDC |
| Breaking Capacity | 100 kA @ 600 VAC (200 kA Littelfuse self-certified); 50 kA @ 500 VDC |
| Body Material | Melamine |
| Mounting Style | Cartridge |
| Terminal Type | Ferrule |
| Packaging | Pack of 10 |
| Approvals | UL Listed, CSA, CE |
| UL File Number | E10480 |
| Standards | UL 248-14 |
| End Cap Material | Copper alloy (stamped caps) |
