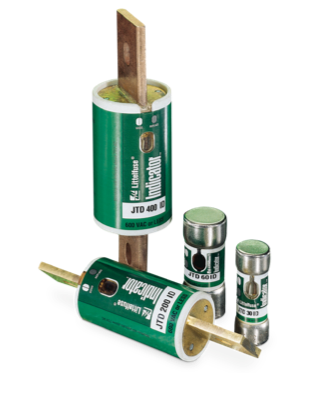

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | JTD110ID |
| Description | Industrial Fuse; 110 A; Class J; Dual-Element; 146.1mm; 600 VAC / 500 VDC; Blade |
| Datasheet | Download Datasheet |
The Littelfuse JTD110ID is a 110 A dual-element time-delay UL Class J fuse with a built-in blown-fuse indicator, rated 600 VAC / 500 VDC.
Class J is a current-limiting 600 V branch-circuit fuse, physically smaller than an RK5 of the same rating and rejecting it in the holder.
Interrupting rating: 200 kA @ 600 VAC (300 kA Littelfuse self-certified); 20 kA @ 500 VDC (self-certified).
Construction: 146.1 mm overall length; knife blade with mounting hole.
It is UL Listed and CSA certified (UL file E81895). Standards: UL 248-8.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | JTD_ID |
| Current Rating (A) | 110 |
| Size | 146.1 mm overall length |
| Speed | Dual-Element Time-Delay |
| UL Class | Class J |
| Voltage Rating | 600 VAC / 500 VDC |
| Breaking Capacity | 200 kA @ 600 VAC (300 kA Littelfuse self-certified); 20 kA @ 500 VDC (self-certified) |
| Body Material | Melamine |
| Terminal Type | Knife blade with mounting hole |
| Blown Fuse Indicator | Yes |
| Approvals | UL Listed, CSA |
| UL File Number | E81895 |
| Standards | UL 248-8 |
| End Cap Material | Brass |
