To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | JTD035 |
| Description | Industrial Fuse; 35 A; Class J; Dual-Element; 27.0x60.3mm; 600 VAC / 300 VDC; UL/CSA |
| Datasheet | Download Datasheet |

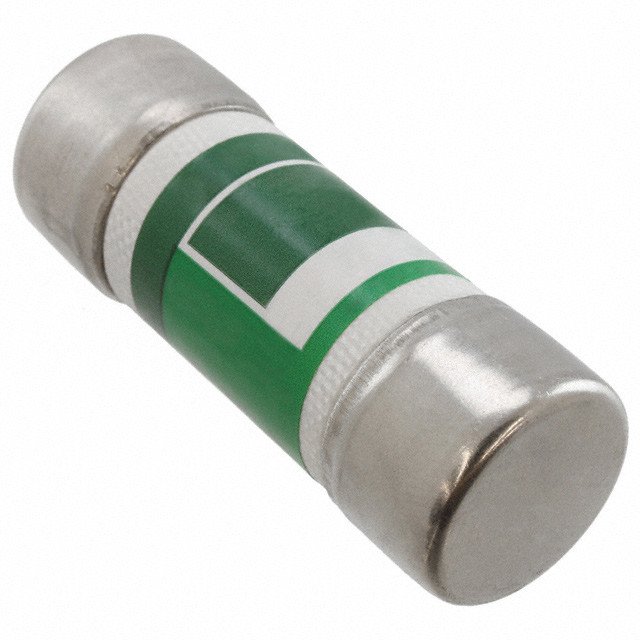

The Littelfuse JTD035 is a 35 A dual-element time-delay UL Class J fuse, rated 600 VAC / 300 VDC.
Class J is a current-limiting 600 V branch-circuit fuse, physically smaller than an RK5 of the same rating and rejecting it in the holder.
Interrupting rating: 200 kA @ 600 VAC (300 kA Littelfuse self-certified); 20 kA @ 300 VDC (self-certified).
Construction: 27.0 x 60.3 mm diameter x length; ferrule terminals.
It is UL Listed and CSA certified (UL file E81895). Standards: UL 248-8.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | JTD |
| Current Rating (A) | 35 |
| Size | 27.0 x 60.3 mm (dia. x length) |
| Speed | Dual-Element Time-Delay |
| UL Class | Class J |
| Voltage Rating | 600 VAC / 300 VDC |
| Breaking Capacity | 200 kA @ 600 VAC (300 kA Littelfuse self-certified); 20 kA @ 300 VDC (self-certified) |
| Body Material | Melamine |
| Terminal Type | Ferrule |
| Approvals | UL Listed, CSA |
| UL File Number | E81895 |
| Standards | UL 248-8 |
| End Cap Material | Nickel-plated bronze |
