Product Description
Description: Cylindrical Fuse • Mounting Type: Requires Holder • Fuse Type: Cartridge • Current Rating (Amps): 100mA • Voltage Rating - AC: 600 VAC • Voltage Rating - DC: 300 VDC • Response Time: Slow Blow • Features: Indicating • Class: RK5 • Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC • Package / Case: Cartridge, Non-Standard
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 100mA |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 VDC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CE, CSA, QPL, UL |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) |
| Series Features |

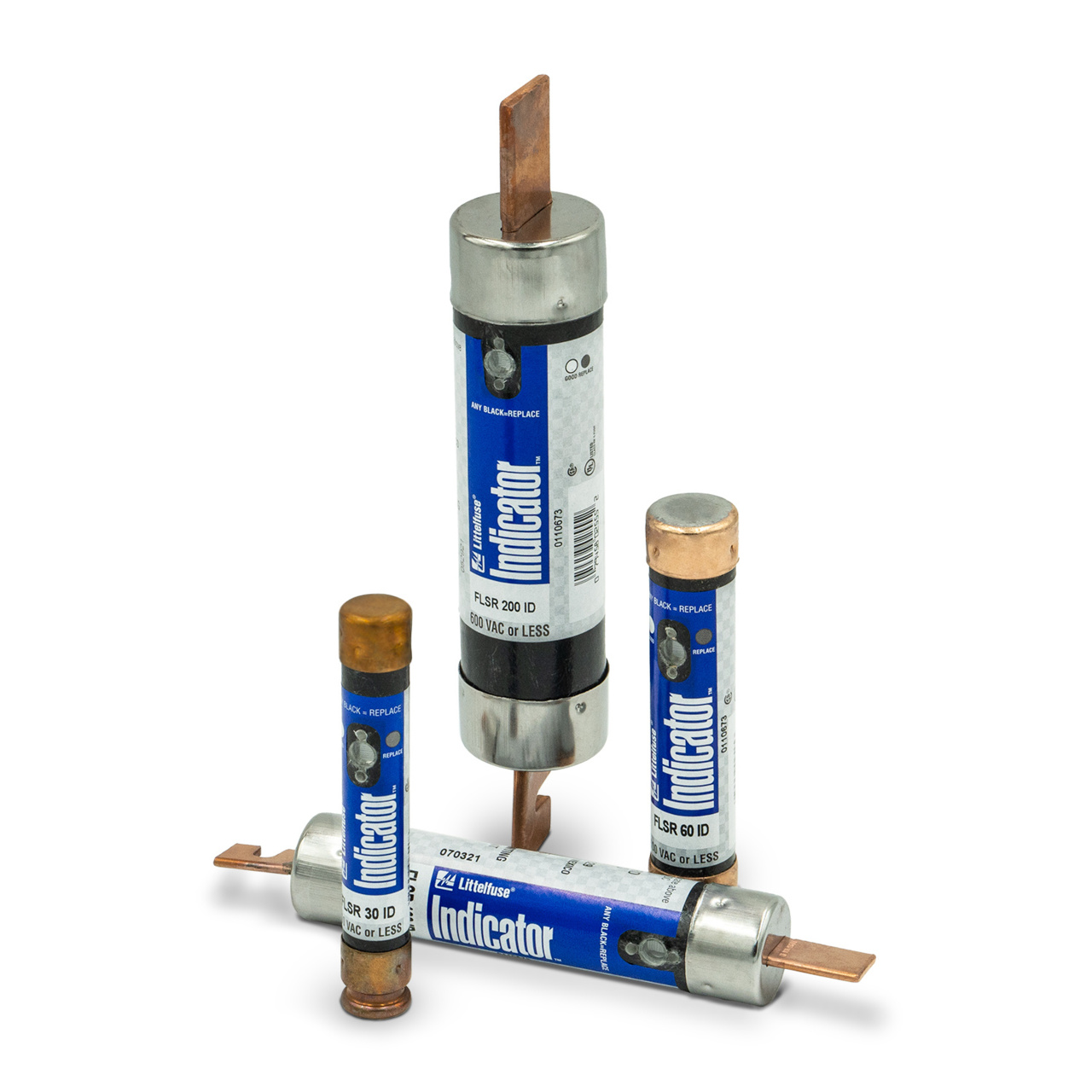

| Littelfuse FLSR ID Fuses Provide Exceptional Overcurrent Protection with Indication |
| Series Description: The FLSR_ID Indicator™ Series offers a patented, state-of-the-art, solid-state design with maximum reliability and superior performance characteristics. The dual-element design ensures advanced short-circuit and overload protection. This series offers visual blown fuse indication at a glance. The use of indicator fuses reduces downtime and nuisance opening, increases safety, and saves money by cutting down on lost production time. These fuses are also available in a non-indicating version, see FLSR series. |
| Series Applications: Service entrance switches, Transformers, Switchboard mains and feeders, Motor control central mains and motor branch circuits, All general purpose circuits |
|
