Product Description

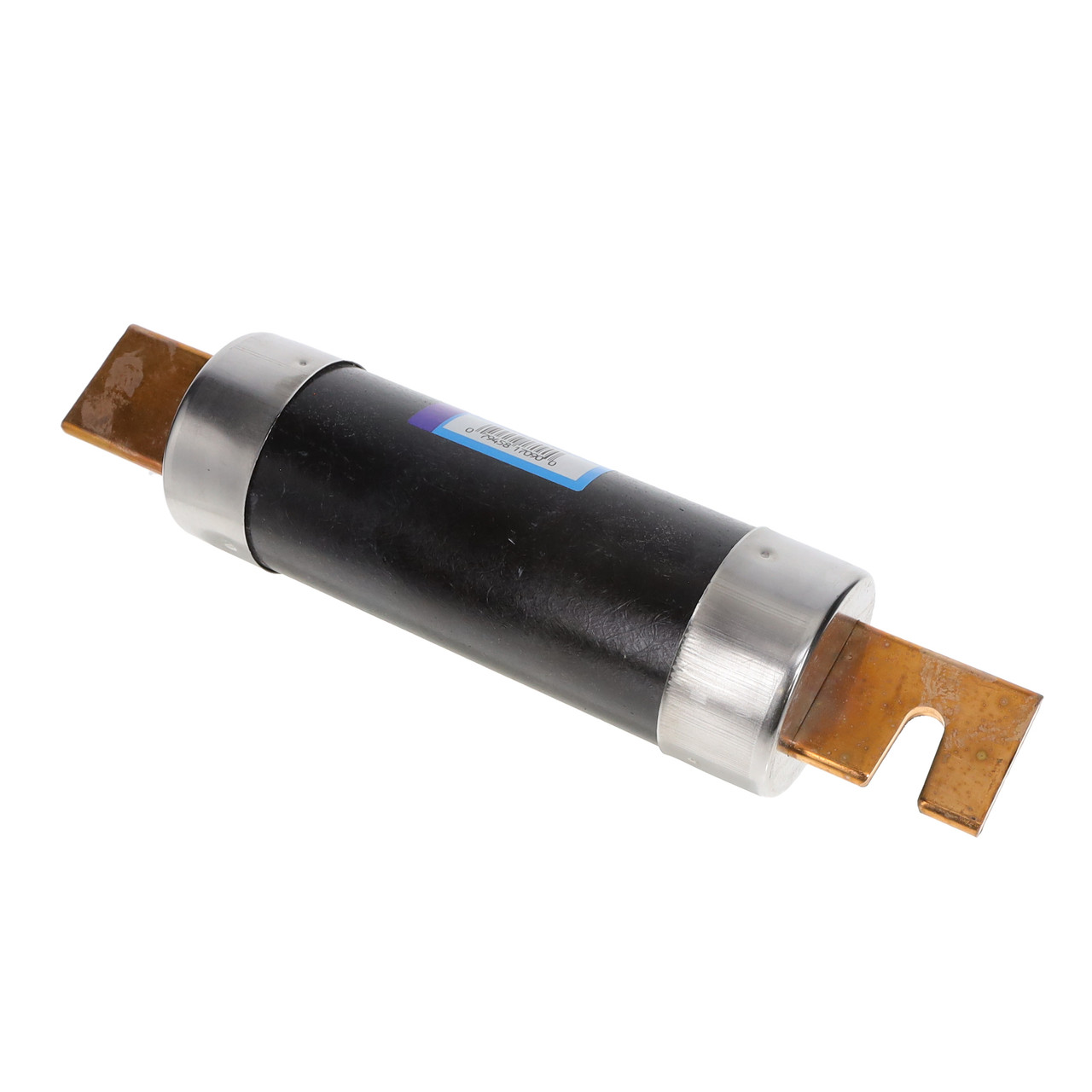

Littelfuse Industrial Business Unit FLSR_ID Series Fuse;HldReq; 200kA AC, 20kA DC; RK5;20A;600 VAC;300 VDC; Ind; Slow Blow; Cartridge, Non-Std
Fuses • Mounting Type: Requires Holder • Fuse Type: Cartridge • Current Rating (Amps): 20A • Voltage Rating - AC: 600 VAC • Voltage Rating - DC: 300 VDC • Response Time: Slow Blow • Features: Indicating • Class: RK5 • Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC • Package / Case: Cartridge, Non-Standard
Product Information
| Manufacturer | Littelfuse Industrial Business Unit |
| Product Category | Fuses |
| Product Sub Category | Cylindrical Fuse |
| Series | FLSR Series |
| Catalog Part Number | FLSR250 |
| Ordering Part Number | FLSR250.X |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 250A |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 VDC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Class | RK5 |
| Approval Agency | CE, CSA, QPL, UL |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 2.594" Dia x 11.626" L (65.90mm x 295.30mm) |
Series Features
Littelfuse FLSR Fuses Provide Exceptional Overcurrent Protection
Series DescriptionThe FLSR series dual-element, time-delay UL Class RK5 fuses are the most widely used fuse class. They offer superior performance and excellent protection for all types of circuits, especially those with motors. Precision manufactured parts ensure an accurate, consistent response to overloads and short-circuits. The FLSR fuses are also available in an indicating version, see the FLSR_ID series.
- Excellent short-circuit protection: Improves safety through faster response to fault currents
- Dual-element design: Provides advanced short-circuit and overload protection
- Current-limiting: Restricts fault currents to provide a high degree of circuit protection
Service entrance switches, Transformers, Switchboard mains and feeders, Motor control central mains and motor branch circuits, All general purpose circuits
