To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | FLQ01.6 |
| Description | Industrial Fuse; 1.6A; Midget; Slow-Blow; 10x38; Pack of 10; 500 VAC / 300 VDC; UL/CSA/CE |
| Datasheet | Download Datasheet |

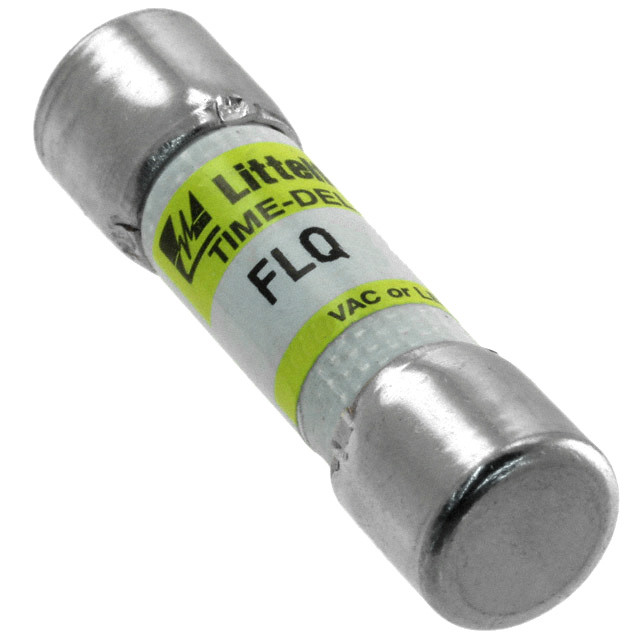

The Littelfuse FLQ01.6 is a 1.6 A time-delay (slow-blow) midget fuse, rated 500 VAC / 300 VDC.
A midget fuse is a 13/32 in diameter supplementary fuse (most are 1-1/2 in long), for protecting equipment and control circuits behind branch-circuit protection rather than as branch protection itself. A time-delay element rides through the brief inrush of motors, transformers and capacitive power supplies, yet still opens on a sustained overload.
Interrupting rating: 10 kA @ 500 VAC; 10 kA @ 300 VDC (Littelfuse self-certified).
Construction: 13/32 x 1-1/2 in (10.3 x 38.1 mm); ferrule terminals.
It is UL Listed, CSA certified and CE marked (UL file E10480). Standards: UL 248-14.
| Category | |
| Manufacturer | LITTELFUSE |
| Model | FLQ |
| Current Rating (A) | 1.6 |
| Size | 13/32 x 1-1/2 in (10.3 x 38.1 mm) |
| Speed | Time-Delay (Slow-Blow) |
| UL Class | Midget (supplementary) |
| Voltage Rating | 500 VAC / 300 VDC |
| Breaking Capacity | 10 kA @ 500 VAC; 10 kA @ 300 VDC (Littelfuse self-certified) |
| Body Material | Paper |
| Mounting Style | Cartridge |
| Terminal Type | Ferrule |
| Packaging | Pack of 10 |
| Approvals | UL Listed, CSA, CE |
| UL File Number | E10480 |
| Standards | UL 248-14 |
| End Cap Material | Copper alloy, nickel plated |
