Product Description

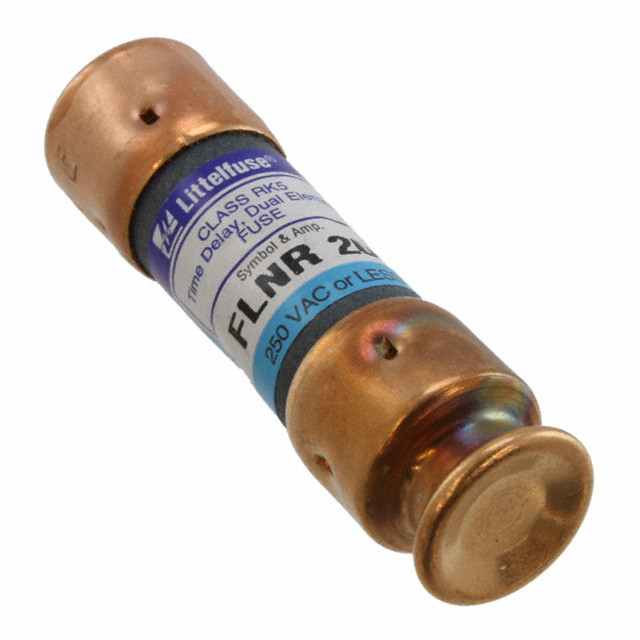

Description: Cylindrical Fuse • Mounting Type: Requires Holder • Fuse Type: Cartridge • Current Rating (Amps): 20A • Voltage Rating - AC: 250 VAC • Voltage Rating - DC: 125 VDC • Response Time: Slow Blow • Class: RK5 • Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC • Package / Case: Cartridge, Non-Standard
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 20A |
| Voltage Rating - AC | 250 VAC |
| Voltage Rating - DC | 125 VDC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Class | RK5 |
| Approval Agency | CE, CSA, QPL, UL |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) |
| Series Features |
| Littelfuse FLNR Fuses Provide Exceptional Overcurrent Protection |
| Series Description: The FLNR series sets the standard for general purpose fuses. The dual-element design provides advanced short-circuit and overload protection. These time-delay fuses are also available in an indicating version, see FLNR_ID series testing. |
| Series Applications: Service entrance switches, Transformers, Switchboard mains and feeders, Motor control central mains and motor branch circuits, All general purpose circuits |
|
