To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | LITTELFUSE |
| Manufacturer Product Number | FLM.250 |
| Description | Industrial Fuse; 0.25A; Midget; Slow-Blow; 10x38; Pack of 10; 250 VAC / 125 VDC; UL/CSA/CE |
| Datasheet | Download Datasheet |

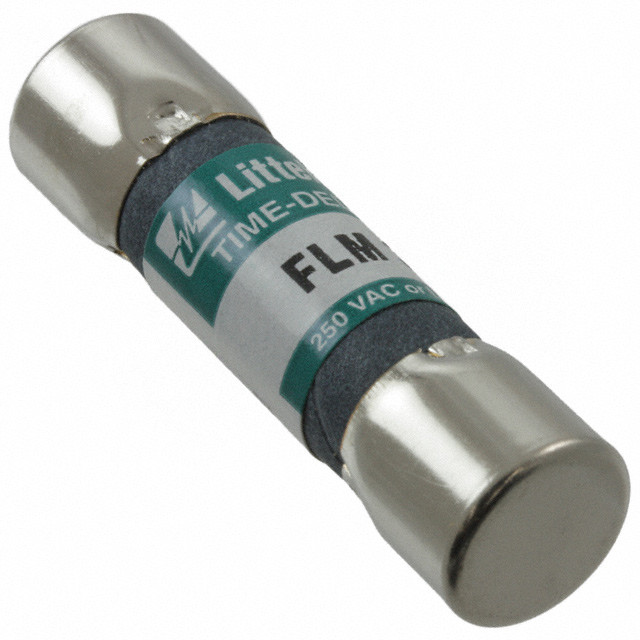

The Littelfuse FLM.250 is a 250 mA time-delay (slow-blow) midget fuse, rated 250 VAC / 125 VDC.
A midget fuse is a 13/32 in diameter supplementary fuse (most are 1-1/2 in long), for protecting equipment and control circuits behind branch-circuit protection rather than as branch protection itself. A time-delay element rides through the brief inrush of motors, transformers and capacitive power supplies, yet still opens on a sustained overload.
Interrupting rating: 10 kA @ 250 VAC; 10 kA @ 125 VDC (Littelfuse self-certified). Opening times, as a percentage of the rated current: 135%: max. 60 min; 200%: min. 5 s.
Construction: 13/32 x 1-1/2 in (10.3 x 38.1 mm); ferrule terminals.
It is UL Listed, CSA certified and CE marked (UL file E10480). Standards: UL 248-14, MIL-F-15160/9 (QPL).
| Category | |
| Manufacturer | LITTELFUSE |
| Model | FLM |
| Current Rating (A) | 0.25 |
| Size | 13/32 x 1-1/2 in (10.3 x 38.1 mm) |
| Speed | Time-Delay (Slow-Blow) |
| UL Class | Midget (supplementary) |
| Voltage Rating | 250 VAC / 125 VDC |
| Breaking Capacity | 10 kA @ 250 VAC; 10 kA @ 125 VDC (Littelfuse self-certified) |
| Body Material | Paper |
| Mounting Style | Cartridge |
| Terminal Type | Ferrule |
| Packaging | Pack of 10 |
| Approvals | UL Listed, CSA, CE |
| UL File Number | E10480 |
| Standards | UL 248-14, MIL-F-15160/9 (QPL) |
| Opening Time | 135%: max. 60 min; 200%: min. 5 s |
| Cold Resistance (Ω) | 16.82 |
| End Cap Material | Nickel-plated bronze |
