Product Description

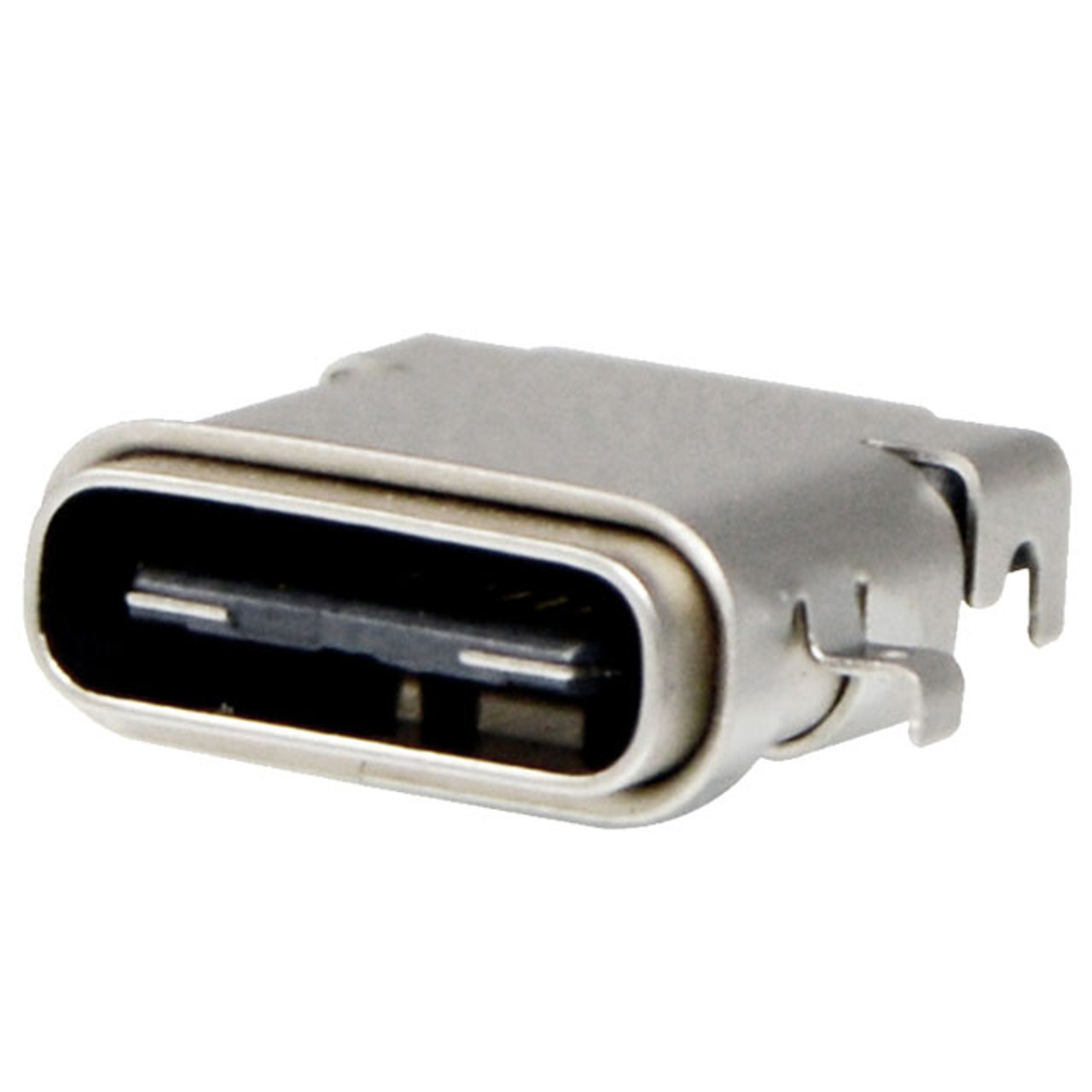

Kycon KUSB67X-MM Series USB-C (USB TYPE-C);24 Contacts; Recept;BrdEdg;SMT;ThruHole;RA; Horizontal, Mid Mount; 1 Port
USB • Connector Type: USB-C (USB TYPE-C) • Number of Contacts: 24 • Gender: Receptacle • Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) • Mounting Type: Board Edge, Cutout; Surface Mount; Through Hole, Right Angle • Mounting Feature: Horizontal, Mid Mount • Termination: Solder • Number of Ports: 1
Product Information
| Manufacturer | Kycon |
| Product Category | USB, DVI, HDMI Connector |
| Product Sub Category | USB |
| Series | KUSB67X-MM Series |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Mounting Feature | Horizontal, Mid Mount |
| Termination | Solder |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 80°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.25A, 1.25A, 5A, 6.25A |
| Voltage - Rated | 30V |
| Mating Cycles | 10000 |
| Shielding | Shielded |
