To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Kycon |
| Manufacturer Product Number | KMBX-SMT-5S-S-30TR |
| Description | USB Connector; USB - mini B; Receptacle; 1 Port; Solder |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

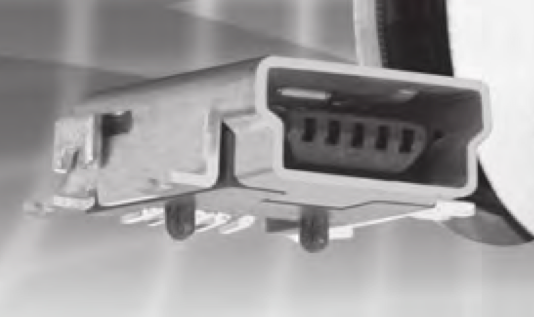

The Kycon KMBX-SMT-5S-S-30TR is a USB connector, supplied with a board guide.
USB Type: USB - mini B. Gender: Receptacle. Mounting Type: Surface Mount, Right Angle; Through Hole. Number of Ports: 1 Port. Termination: Solder.
| Category | |
| Manufacturer | Kycon |
| USB Type | USB - mini B |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Gender | Receptacle |
| Termination | Solder |
| Number of Ports | 1 Port |
| Number of Contacts | 5 |
| Shielding | Shielded |
| Mounting Feature | Horizontal |
| Current Rating (A) | 1 |
| Operating Temperature | -55°C ~ 85°C |
| Voltage Rating | 30VAC |
| Mating Cycles | 5000 |
| Features | Board Guide |
