Product Description

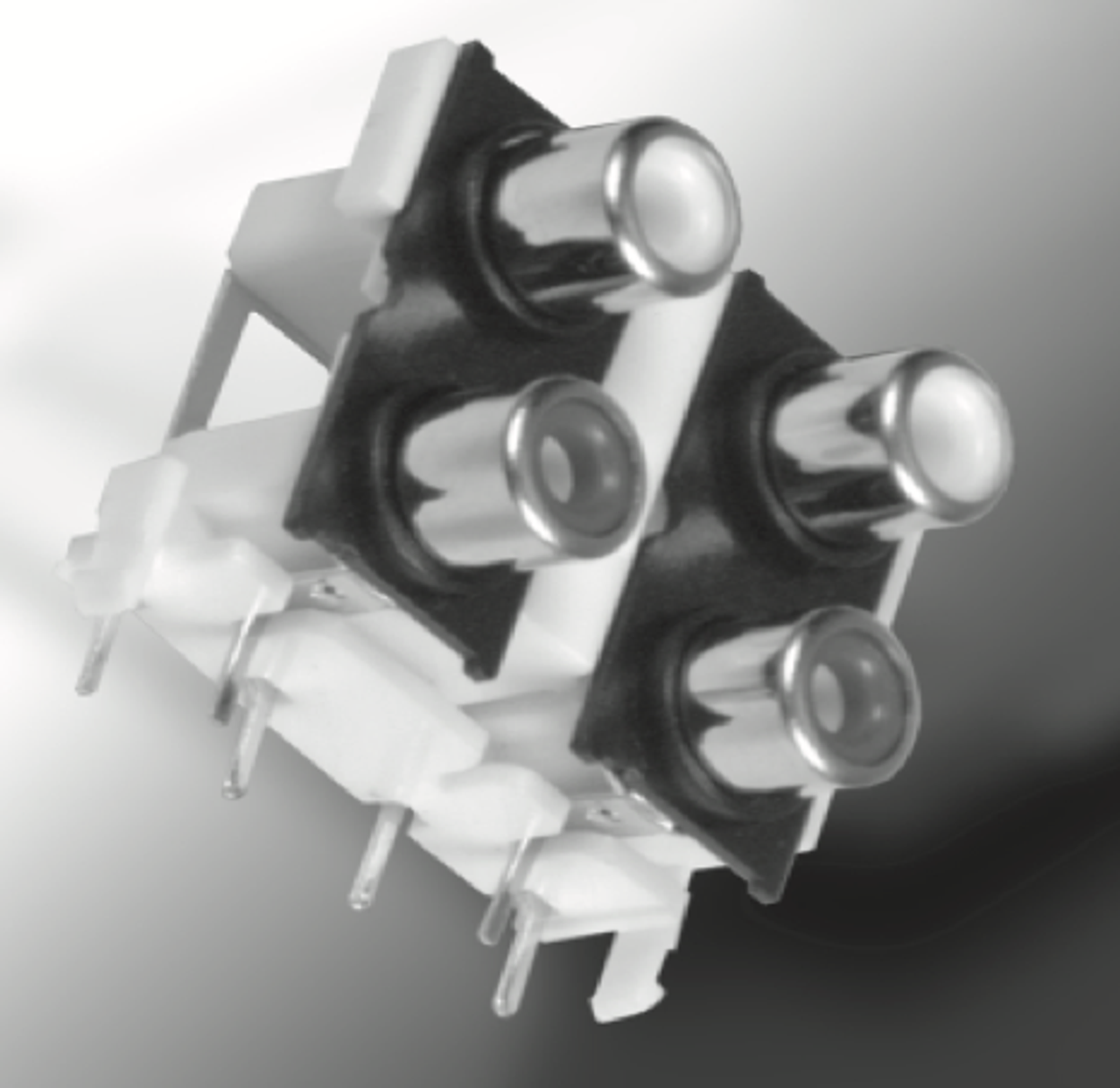

Kycon KLP42X Series RCA Phono Jack; Female; Mono; 3.20mm ID, 9.00mm OD; 2Sets/2 Cond, 3 Cnt; ThruHole
RCA Phono Jack • Gender: Female • Signal Lines: Mono • Industry Recognized Mating Diameter: 3.20mm ID, 9.00mm OD (RCA) • Number of Positions/Contacts: 2 Sets of 2 Conductors, 3 Contacts • Mounting Type: Through Hole, Right Angle • Insulation Color: Black
Product Information
| Manufacturer | Kycon |
| Product Category | Connector, Interconnect |
| Product Sub Category | RCA Phono Jack |
| Series | KLP42X Series |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Connector Type | Phono (RCA) Jack |
| Gender | Female |
| Signal Lines | Mono |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Actual Diameter | 0.132" (3.35mm ID), 0.327" (8.30mm OD) |
| Number of Positions/Contacts | 2 Sets of 2 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Lock |
| Insulation Color | Black |
| Operating Temperature | -20°C ~ 60°C |
