Product Description

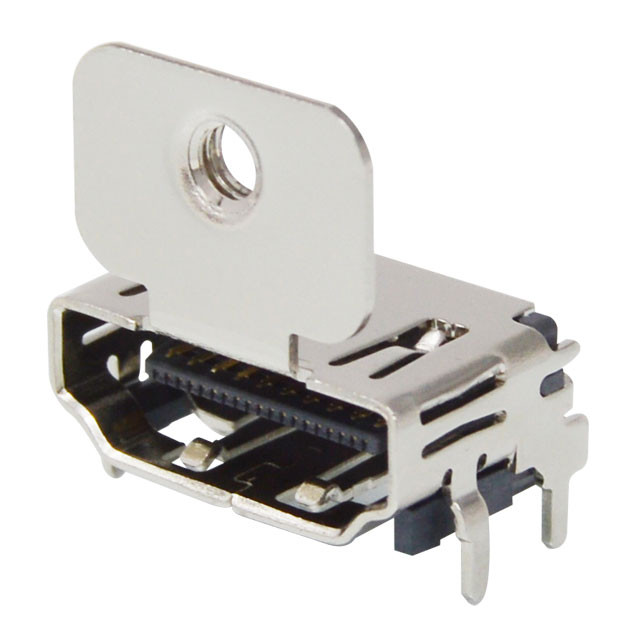

Kycon KDMIX-FS2-WS-B15-TR21 Series HDMI; 19 Contacts; Receptacle; SMT, Rt Angle; Thru Hole; Flange, Horizontal; SS
USB, DVI, HDMI Connector • Connector Type: HDMI • Number of Contacts: 19 • Gender: Receptacle • Mounting Type: Surface Mount, Right Angle; Through Hole • Mounting Feature: Flange, Horizontal • Number of Ports: 1 • Shell/Shielding Material: Steel, Stainless
Product Information
| Manufacturer | Kycon |
| Product Category | USB, DVI, HDMI Connector |
| Product Sub Category | HDMI Connector |
| Series | KDMIX-FS2-WS-B15-TR21 Series |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Connector Type | HDMI |
| Number of Contacts | 19 |
| Gender | Receptacle |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Mounting Feature | Flange, Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | - |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.5A |
| Voltage - Rated | - |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
Series Features
KDMIX Series
Series DescriptionHDMI™: Through Hole Shield Flange With Top Spring, Insert Molded Contact
- Fully shielded to provide excellent ESD protectiony
- Provides Low Impedance Mismatch
- 19 Position Receptacle
- Panel Mount Flange Option Adds Mechanical Stability and Provides Additional Grounding
- Insert Molded Contacts provide increased durabilit
