Product Description

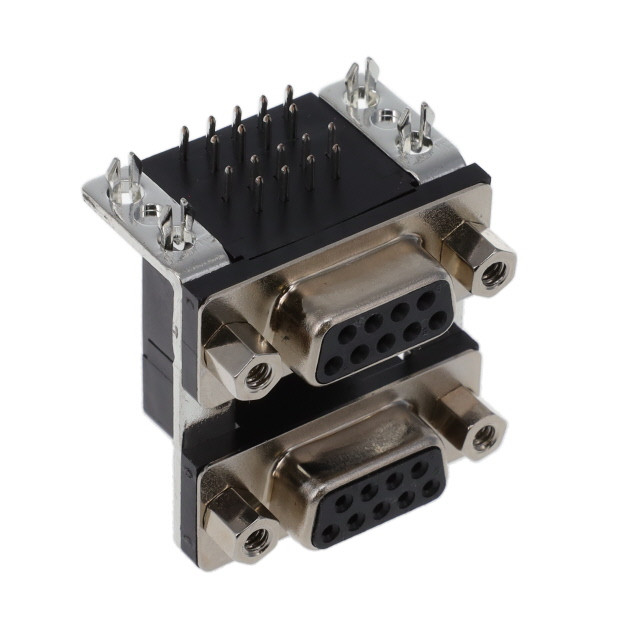

Kycon K42X Series D-Sub; Receptacle, Female Skt; 9, 9 Pos;2, 2 Rows; TH, RA; Mating Side, Fem Screwlk(4-40)
D-Subminiature • Connector Type: Receptacle, Female Sockets • Number of Positions: 9, 9 • Number of Rows: 2, 2 • Mounting Type: Through Hole, Right Angle • Flange Feature: Mating Side, Female Screwlock (4-40)
Product Information
| Manufacturer | Kycon |
| Product Category | Connector, Interconnect |
| Product Sub Category | D-Subminiature |
| Series | K42X Series |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9, 9 |
| Number of Rows | 2, 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1.2A |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Mounting Brackets |
Series Features
D-SUBMINIATURE CONNECTORS:K42X Series
Series DescriptionDual-Port D-Sub
