Product Description

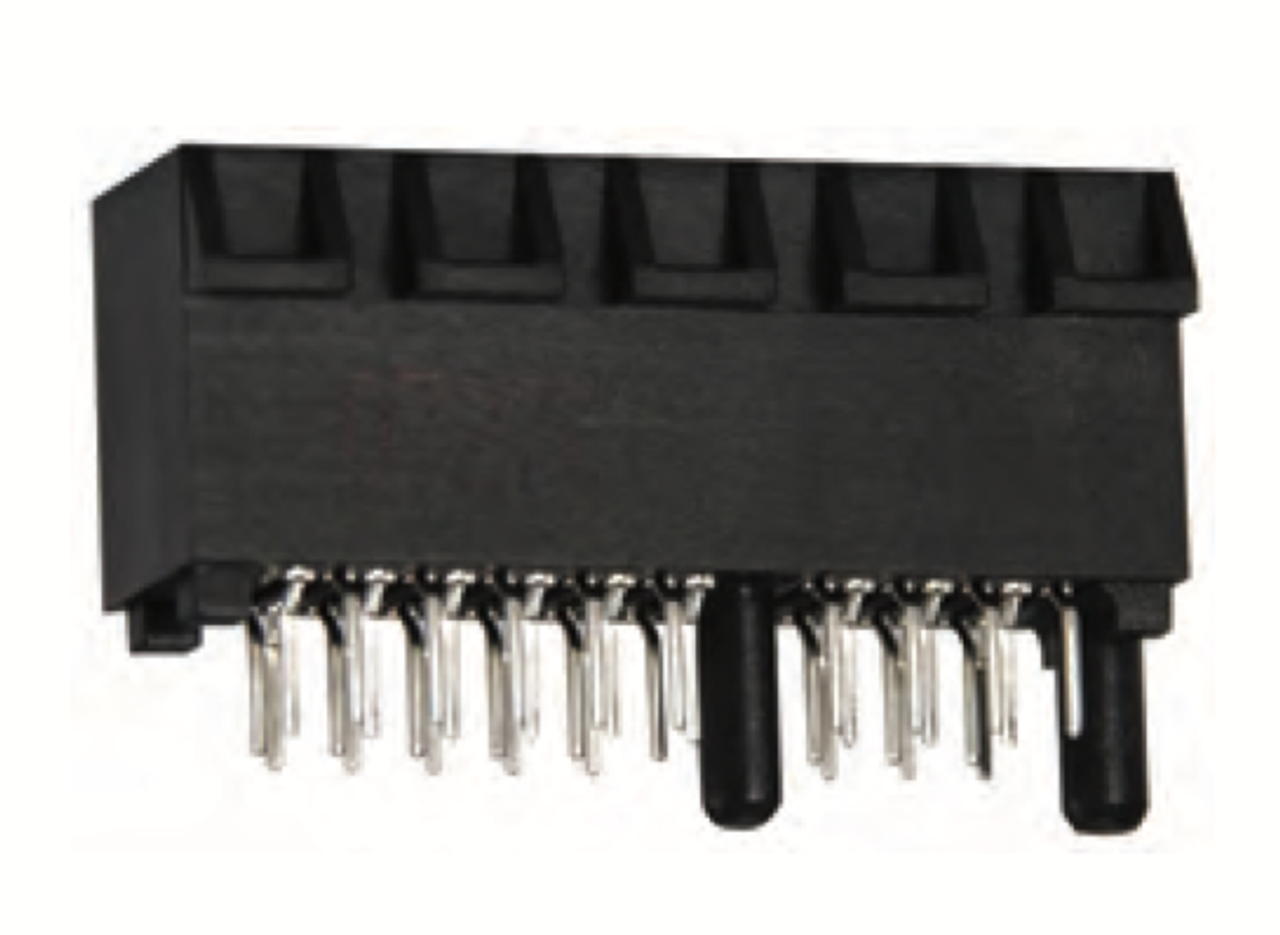

Kycon KPCIEX-T Series Card Edge Connector; Female; 164 Contacts; 0.039" (1.00mm); 2 Rows; Through Hole
Card Edge Connector • Card Type: PCI Express™ • Gender: Female • Number of Positions: 164 • Card Thickness: 0.062" (1.57mm) • Number of Rows: 2 • Pitch: 0.039" (1.00mm) • Read Out: Dual • Mounting Type: Through Hole
Product Information
| Manufacturer | Kycon |
| Product Category | Connector, Interconnect |
| Product Sub Category | Card Edge Connector |
| Series | KPCIEX-T Series |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Card Type | PCI Express™ |
| Gender | Female |
| Number of Positions | 164 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.039" (1.00mm) |
| Read Out | Dual |
| Features | Board Guide, Locking Ramp |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | Cantilever |
| Color | Black |
| Flange Feature | - |
Series Features
PCI EXPRESS CARD EDGE: KPCIEX Series
- Supports 2.5 Gb/s Data Transfer Rate (Per Pair Data Bandwidth)
- Standard 36, 64, 98,164 Pin
- 230 and 280 Pin Option
- Standard 1.0mm Pitch
