Product Description

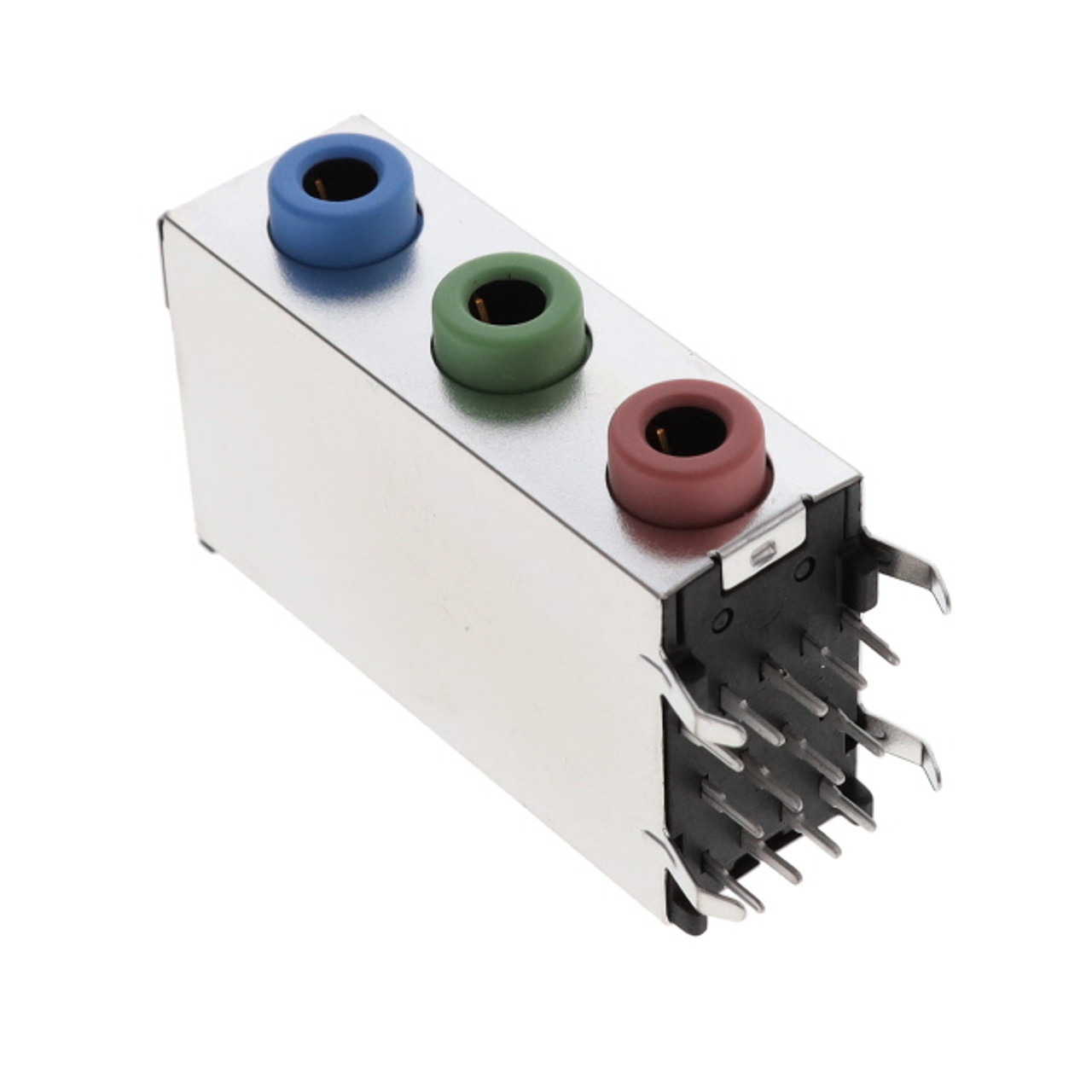

Kycon STX-4335 Series Audio Con; Phone Jack, Triple; Female; 3.50mm; Thru Hole, RA; Stereo (3 Conductor, TRS)
Audio Connector • Connector Type: Phone Jack, Triple • Gender: Female • Signal Lines: Stereo (3 Conductor, TRS) • Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone • Number of Positions/Contacts: 3 Sets of 3 Conductors, 15 Contacts • Mounting Type: Through Hole, Right Angle
Product Information
| Manufacturer | Kycon |
| Product Category | Connector, Interconnect |
| Product Sub Category | Audio Connector |
| Series | STX-4335 Series |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Connector Type | Phone Jack, Triple |
| Gender | Female |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Actual Diameter | 0.142" (3.60mm) |
| Number of Positions/Contacts | 3 Sets of 3 Conductors, 15 Contacts |
| Internal Switch(s) | Six Switches |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Lock |
| Insulation Color | Blue, Lime, Pink |
| Operating Temperature | -25°C ~ 100°C |
