To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Kanson / ISSC |
| Manufacturer Product Number | 1214-1-K-B |
| Description | Motion Detectors; Underspeed; 120 VAC; Base mount |
| Datasheet | Download Datasheet |

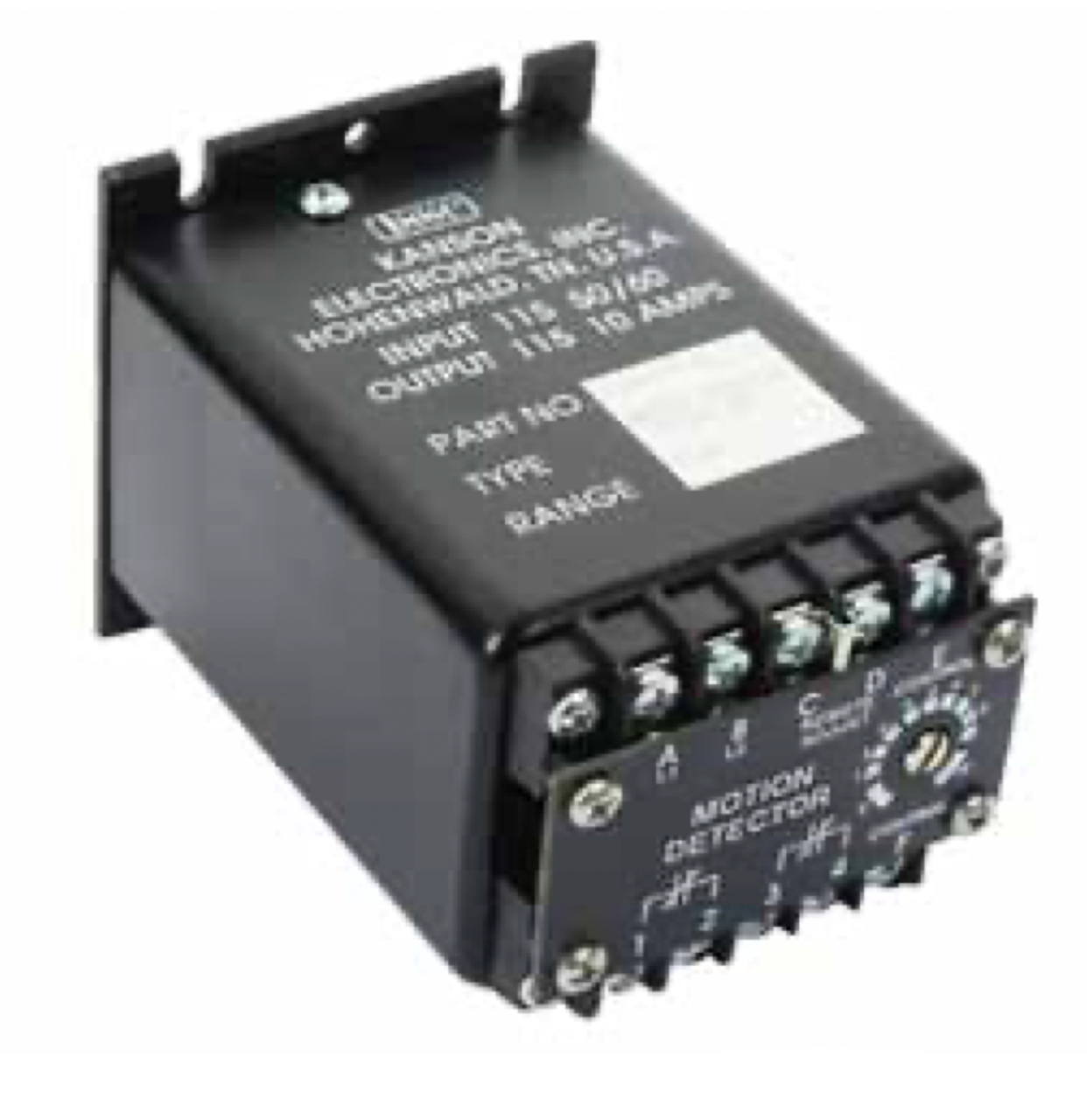

The Kanson / ISSC 1214-1-K-B is a motion detectors with 1 N.O., 1 N.C. (SPDT equivalent, timed) output and rated 10 A at 240 VAC maximum, driven by a 120 VAC input.
It repeats a Control circuit closed 2 ms min; open 50 ms min; 18 pulses/s max cycle.
It has Base mounting and Terminal blocks on face of unit terminals.
| Category | |
| Manufacturer | Kanson / ISSC |
| Detection Function | Underspeed |
| Sensor Type | Isolated contact closure (maximum resistance 100 Ohm) |
| Time Ranges | 0.06-100 s |
| Timing Ramp | 100 kOhm/s |
| Cycle Time | Control circuit closed 2 ms min; open 50 ms min; 18 pulses/s max |
| Input Voltage | 120 VAC |
| Input Operating Range | +/-10% of nominal |
| Rated Power | 10 VA maximum |
| Control Terminals | E-F |
| Output Type | Electromechanical relay |
| Contact Configuration | 1 N.O., 1 N.C. (SPDT equivalent, timed) |
| Output Rating | 10 A - 240 VAC maximum |
| Operating Temperature (°C) | 0...+50 |
| Mounting Type | Base mount |
| Termination Style | Terminal blocks on face of unit |
| Housing Material | Metal |
| Dimensions | 2.875 x 3.06 in (73.0 x 77.7 mm), depth 4.25 in (108.0 mm) |
