Product Description
|
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Technology | Electromechanical |
| Type | Closed Frame (Push), Tubular |
| Plunger Configurations | Flat face plunger without anti-rotation flat |
| Maximum Duty Cycle | 1 |
| Coil awg | 23 |
| Voltage - Rated | 4.4VDC |
| Stroke Length | 0.600" |
| DC Resistance (DCR) | 1.96Ohm |
| Bushing Thread | 3/4-16 UNF |
| Mounting Type | Panel Mount |
| Termination Style | Wire Leads |
| Size / Dimension | 1.020" Dia x 2.050" L (25.91mm x 52.07mm) |
| Diameter - Shaft | 0.125" (3.18mm) |
| Shaft Detail | Round |
| Power (Watts) | 10 W |
| # Turns | 536 |
| Series Features |

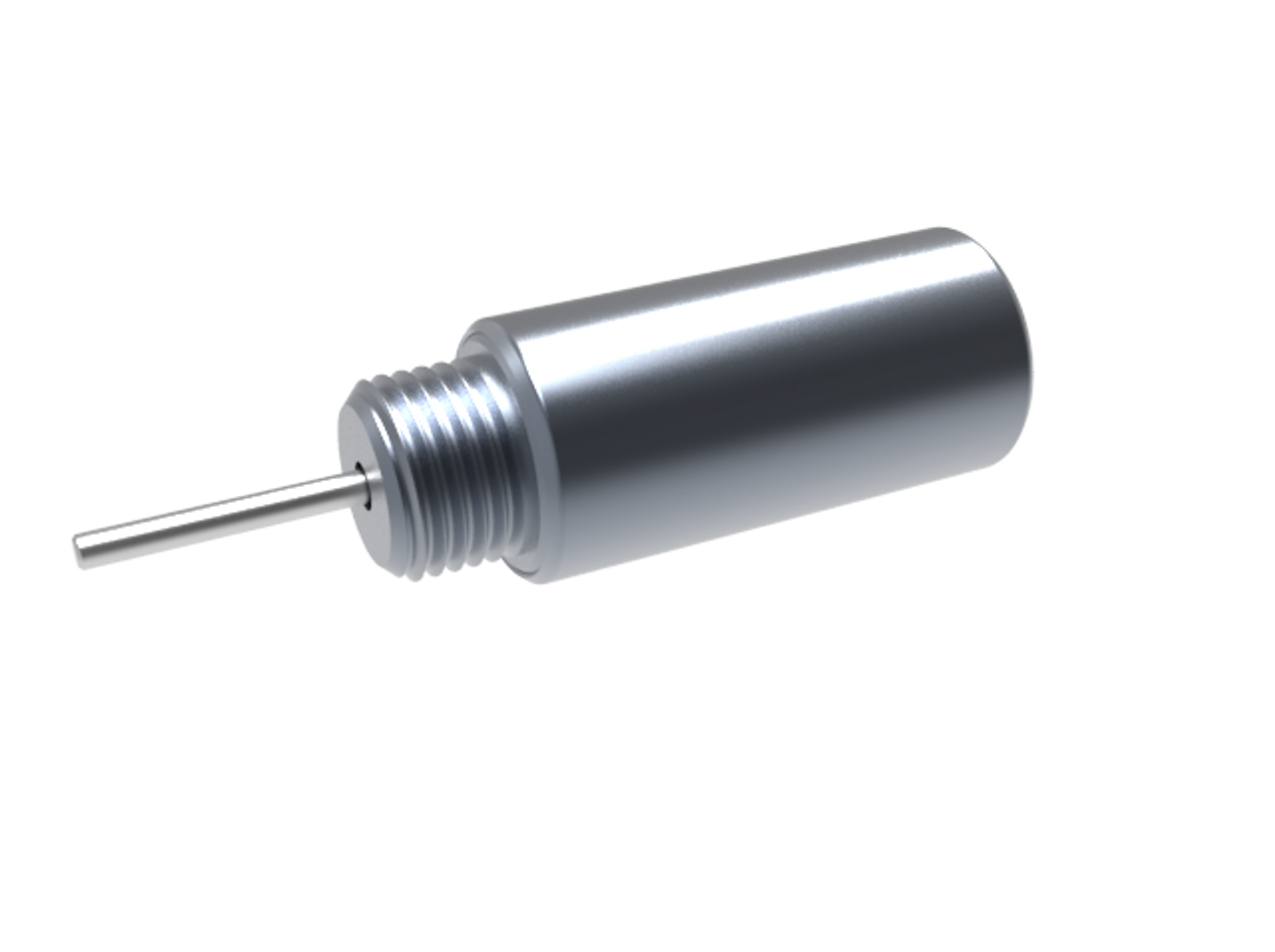

| Size 100STA® Push Tubular Solenoids 1" Dia. x 2" |
| Series Description: Setting the Standard for the Industry Ledex linear actuators deliver high force for short-stroke applications and long service life in a wide variety of applications. With performance long recognized as the industry standard, the most popular configurations now offer an improved next-generation design that reduces lead time risks while offering full traceability, easy adaptation to legacy designs, and expandability to leverage the latest smart technologies. |
| Series Applications: Door/safety interlocks, Warehouse automation/sortation, Laboratory/medical diagnostic equipment, Medical cabinet locking, Valves |
|
