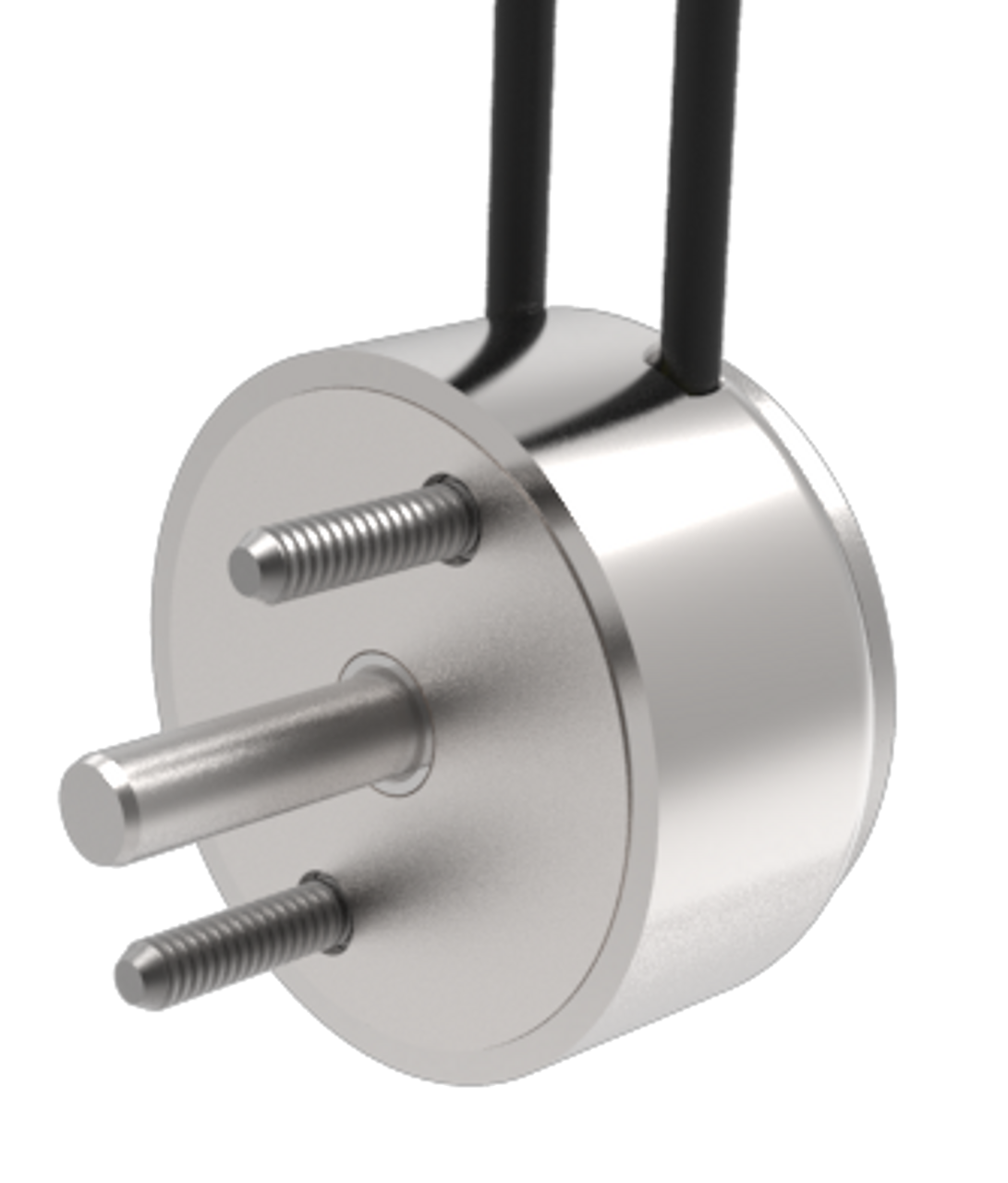

Product Description
|
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Technology | Electromechanical |
| Type | Closed Frame (Pull), Tubular |
| Duty Cycle | Continuous |
| Coil awg | 26 |
| Voltage - Rated | 12.1VDC |
| Stroke Length | 0.140" (3.56mm) |
| DC Resistance (DCR) | 7.2Ohm |
| Bushing Thread | - |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Size / Dimension | 1.875" Dia x 0.880" L (47.63mm x 22.35mm) |
| Diameter - Shaft | 0.250" (6.35mm) |
| Shaft Detail | Round |
| Power (Watts) | 21 W |
| # Turns | 550 |
| Series Features |
| Low Profile Size 5SF Push or Pull |
| Series Description: Ideal for High-Force, Short-Stoke Applications Our small linear actuator technology provides the highest force per package size available in the market: up to 190 pounds of force with stroke lengths up to 0.7 inches. Low Profile solenoids are available with dual-shaft extensions for pull or push use. The orientation of the solenoid determines the configuration. |
| Series Applications: Locking mechanisms, Thrust lockout devices, Medical devices, Laboratory and testing equipment, Packaging equipment, Pumps |
|
