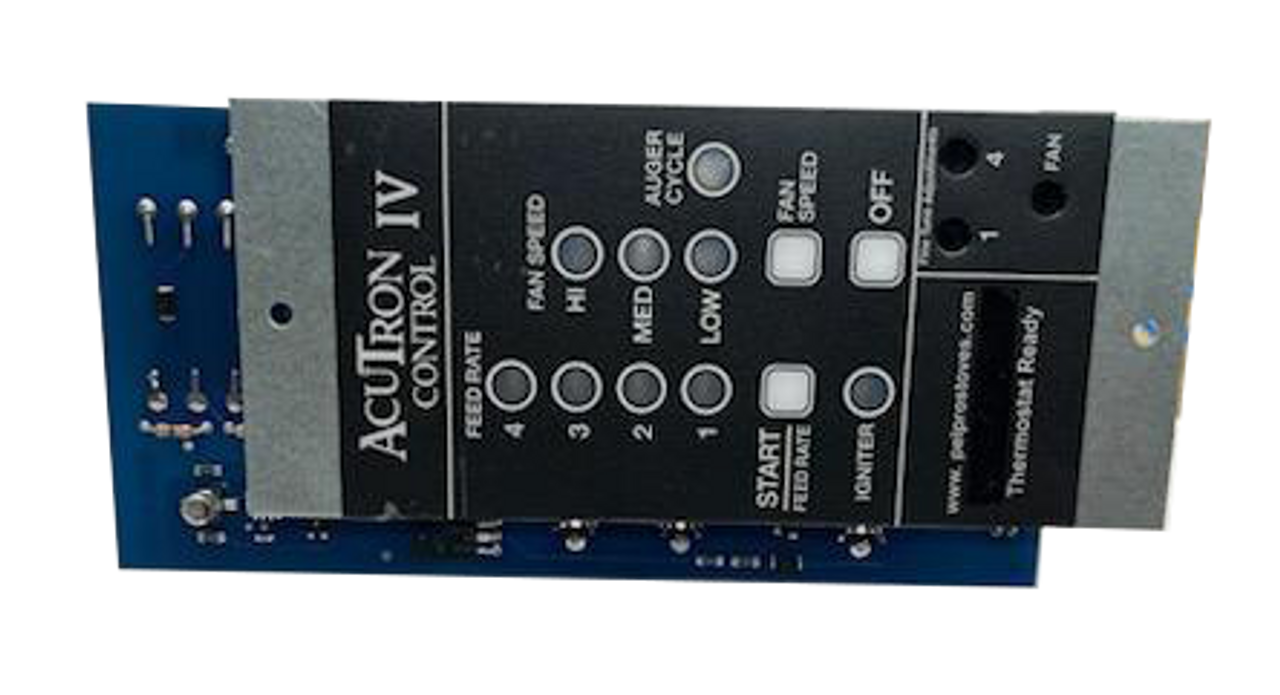

Description: 120 VAC Appliance Contorller for Pellet Stoves, Furnaces, Boilers - LED Status Panel, Touchpad Adjustments, Four Solid State Outputs (Two Phase Controlled for Fans and Blowers)
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Operating voltage | 120 VAC |
| Tactile Buttons | 1 SW1: Start (Feed Rate) 2 SW2: Convection Fan Speed 3 SW3: Fuel Off /System Shutdown |
| Temperature Probe | HOT/COLD Thresholds: (RTD) - Pickup: 1.354K Dropout: 1.263K Feed Rate Override Resistance: 2.141K Ohm |
| Transient | Movistor Protected to 10 Joules |
| Dielectric Breakdown | 1500 Volts RMS Minimum |
| Mounting | #6 Screw Clearance (2 Places) |
| Termination | 9 Circuit, Male Molex Connector |
| Package | Open Board Attached to Steel Plate With Graphic Overlay |
| Outputs | Convection Fan / Combustion Fan / Igniter / Auger |
| Indicators | Feed Rate 1,2,3,4: Red LEDs (4 Places) Fan Speed High, Medium, Low: Green LEDs (3 Places) Igniter: Red LED (1 Place) Auger Cycle: Green LED (1 Place) |
| Time Delays | Igniter, Startup Delay: 15 Minutes Igniter Delay: 5 Minutes Cool Down Delay: 5 Minutes Combustion Delay: 10 Seconds Convection Delay: 3 Seconds Learning Step Delay: 3 Seconds Combustion Re-Learn Cycle Auger Feed Rate |
| Series Features |
| CD0048-V |
| Series Description: TEMPERATURE REGULATED HEAT CONTROL SYSTEM |
|
