Product Description

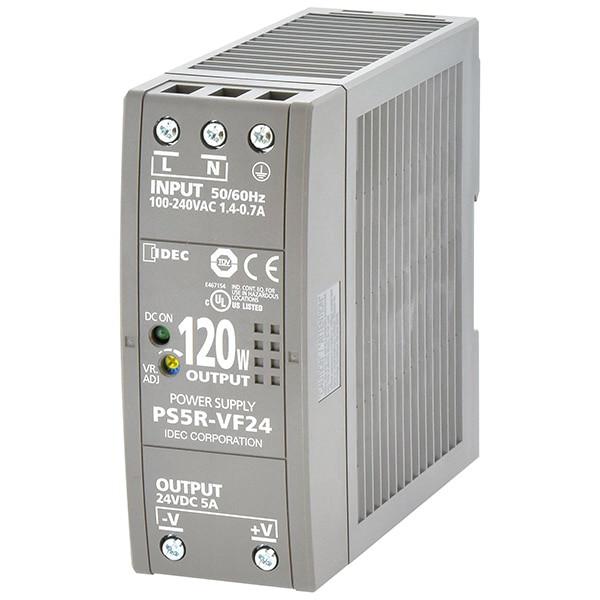

Description: Switching Power Supply • Watts: 120W • Rated Voltage: 24 VDC • Rated Current: 5.0A • Material: Plastic • Input Voltage: 100 to 240V AC (Voltage range: 85 to 264VAC / 100 to 370V DC) • Mounting: DIN Rail or surface mount
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Watts | 120W |
| Rated Voltage | 24 VDC |
| Rated Current | 5.0A |
| Material | Plastic |
| Input Voltage | 100 to 240V AC (Voltage range: 85 to 264VAC / 100 to 370V DC) |
| Mounting | DIN Rail or surface mount |
| Frequency | 50/60 Hz |
| Input Current (Typ.) | 100VAC: 1.4A 230VAC: 0.7A |
| Inrush Current (cold start) | 100V AC: 18A, 230V AC: 41A |
| Leakage Current (at no load) | 120VAC: 0.5mA max. / 230VAC: 1.0mA max. |
| Typical Efficiency | 100VAC: 88% / 230VAC: 89% |
| Power Factor (Typ.) | 110VAC: 0.99 / 230 VAC: 0.92 |
| Adjustable Voltage Range | ±10% |
| Output Holding Time | 100VAC: 30ms / 230VAC: 33ms |
| Start Time (at rated input and output) | 700ms max. |
| Rise Time (at rated input and output) | 200ms max. |
| Input Fluctuation | 0.4% max. |
| Load Fluctuation | 1.0% max. |
| Temperature Change | 0.05%/°C max. (-25 to +55°C ) |
| Overvoltage Protection | 105% min. (auto reset) |
| Operation Indicator | LED (green) |
| Dielectric Strength | Between input and output terminals: 3,000V AC, 1 minute Between input terminal and housing: 2,000V AC, 1 minute Between output terminal and housing: 500V AC, 1 minute |
| Insulation Resistance | Between input and output terminals: 100M? min. (500V DC megger) Between input and ground terminals: 100M? min. (500V DC megger) |
| Operating Temperature | -25 to +65°C |
| Operating Humidity (no condensation) | 20 to 90% RH |
| Storage Temperature (No freezing) | -25 to +75°C |
| Storage Humidity (no condensation) | 20 to 90% RH |
| Vibration Resistance | 10 to 55Hz, amplitude 0.21mm, 2 hours each in 3 axes (when used with BNL6 end clips) 10 to 55Hz, amplitude 0.375mm, 2 hours each in 3 axes (when used with BNL8 end clips) |
| Shock Resistance | 300 m/s^(2) (30G), 3 times each in 6 directions |
| Expected Life | 8 years minimum (at the rated input, 50% load, operating temperature +40°C, standard mounting direction) |
| Dimensions (mm) (terminal part except | 115H × 46W × 121D |
| Weight (approx.) | 470g |
| Terminal screw (horizontal type) | M3.5 |
| Series Features |
| PS5R-V Series Switching Power Supplies |
| Series Description: DIN-rail mount switching power supplies with global approvals for both industrial and hazardous locations |
|
