To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | PS3X-B12AFC |
| Description | Switching Power Supply; 12V DC; 15 W; 1.3 A; 28 mm |
| Datasheet | Download Datasheet |

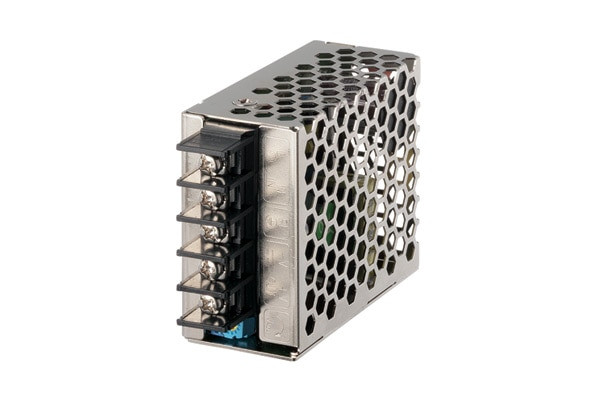

The IDEC PS3X-B12AFC is a 15 W 12V DC switching power supply rated 1.3 A, for 100-240V AC input (85-264V AC / 120-375V DC).
It mounts directly on a panel, or on DIN rail with a PS9Z bracket. It is 28 mm wide. Wiring is to screw terminals. The output is adjustable by ±10%.
Efficiency: 81% typ. (230V AC input, rated output). Protection: overcurrent protection, 105% min. (auto reset); overvoltage protection, voltage limitation at 115% min. It operates from -20 to +70 °C and stores from -40 to +85 °C. Approvals: IEC/EN60950-1, UL60950-1, CSA C22.2 No. 60950-1 (UL/c-UL recognized, TUV).
| Category | |
| Manufacturer | IDEC |
| Part Status | Discontinued |
| Output Voltage | 12V DC |
| Output Current | 1.3 A |
| Output Power (W) | 15 |
| Output Voltage Adjustment | ±10% |
| Input Voltage | 100-240V AC |
| Input Operating Range | 85-264V AC / 120-375V DC |
| Efficiency | 81% typ. (230V AC input, rated output) |
| Protection Features | Overcurrent protection, 105% min. (auto reset); Overvoltage protection, Voltage limitation at 115% min. |
| Module Width (mm) | 28 |
| Mounting Type | DIN Rail or Panel |
| Termination Style | Screw Terminal |
| Operating Temperature | -20...+70 °C (-40...+85 °C) |
| Approvals | IEC/EN60950-1, UL60950-1, CSA C22.2 No. 60950-1 (UL/c-UL recognized, TUV) |
