To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | PS3V-150AF24C |
| Description | Switching Power Supply; 24V DC; 150 W; 6.5 A; 39 mm |
| Datasheet | Download Datasheet |

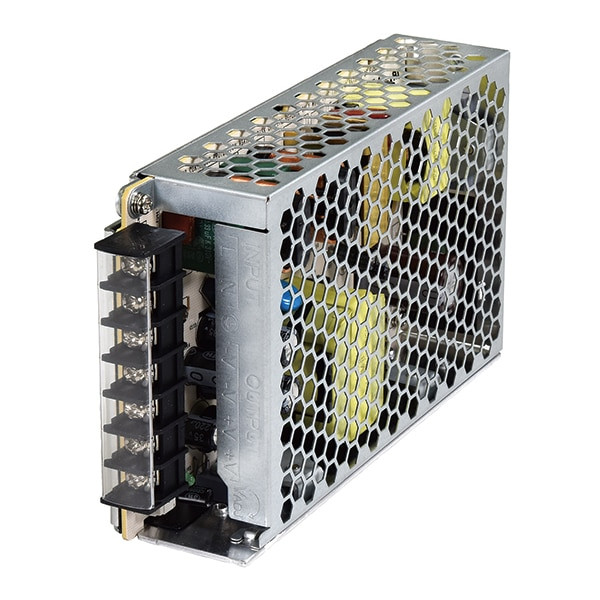

The IDEC PS3V-150AF24C is a 150 W 24V DC switching power supply rated 6.5 A, for 100-240V AC input (85-264V AC).
It mounts directly on a panel, or on DIN rail with a PS9Z bracket. It is 39 mm wide. Wiring is to screw terminals. The output is adjustable by ±10%.
Efficiency: 85% (100V AC), 88% (230V AC) typ., at rated output. Protection: overcurrent protection, 105% min. (auto reset); overvoltage protection, output off at 120% min, reset when re-input. It operates from -25 to +70 °C and stores from -25 to +75 °C. Approvals: EN62368-1 (TÜV), IEC 62368-1, UL61010-1, UL61010-2-201, CSA C22.2 No.61010-1, CSA C22.2 No.61010-2-201 (Listing, SELV), UL62368-1, CSA C22.2 No.62368-1-14 (Recognition).
| Category | |
| Manufacturer | IDEC |
| Part Status | Discontinued |
