Product Description
Description: Signal Relays • Coil Voltage: 5 VDC • Contact Configuration: 2C DPDT (Bifurcated) • Current: 1 A • Mounting: Through Hole • Operating Function: Single Side Stable • Termination Style: PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 5 VDC |
| Contact Configuration | 2C DPDT (Bifurcated) |
| Current | 1 A |
| Mounting | Through Hole |
| Operating Function | Single Side Stable |
| Termination Style | PC Pin |
| Contact Material | AgNi (gold clad) |
| Degree of Protection | IP40 |
| Contact Resistance | 50m? maximum (measured using 5V DC, 1A voltage drop method) |
| Operating Time (at 20°C) | 15ms maximum (at the rated coil voltage, excluding contact bounce time) |
| Release Time (at 20°C) | 10ms maximum (at the rated coil voltage, excluding contact bounce time) |
| Impulse Withstand Voltage | 100M? minimum (500V DC megger) |
| Insulation Resistance | 10,000V AC (between contact and coil) |
| Dielectric Strength | Between contact and coil: 5,000V AC, 1 minute Between contacts of the same pole: 1,000V AC, 1 minute Between contacts of the different poles: 3,000V AC, 1 minute |
| Vibration Resistance | Operating Extremes: 10 to 55 Hz, amplitude 0.75 mm Damage Limits: 10 to 55 Hz, amplitude 0.75 mm |
| Shock Resistance | Operating Extremes NO contact: 200 m/s2, NC contact: 100 m/s2 Damage Limits 1,000 m/s2 |
| Electrical Life | AC load: 100,000 operations minimum (operating frequency 1,800 per hour) DC load: 200,000 operations minimum (operating frequency 1,800 per hour) |
| Mechanical Life | AC load: 10 million operations minimum (operating frequency 18,000 operations per hour) DC load: 20 million operations minimum (operating frequency 18,000 operations per hour) |
| Operating Temperature | (100% rated voltage) –40 to +70°C (no freezing) |
| Operating Humidity | 5 to 85%RH (no condensation) |
| Storage Temperature | –40 to +85°C (no freezing) |
| Storage Humidity | 45 to 85%RH (no condensation) |
| Series Features |
| RJ Slim PCB Series |

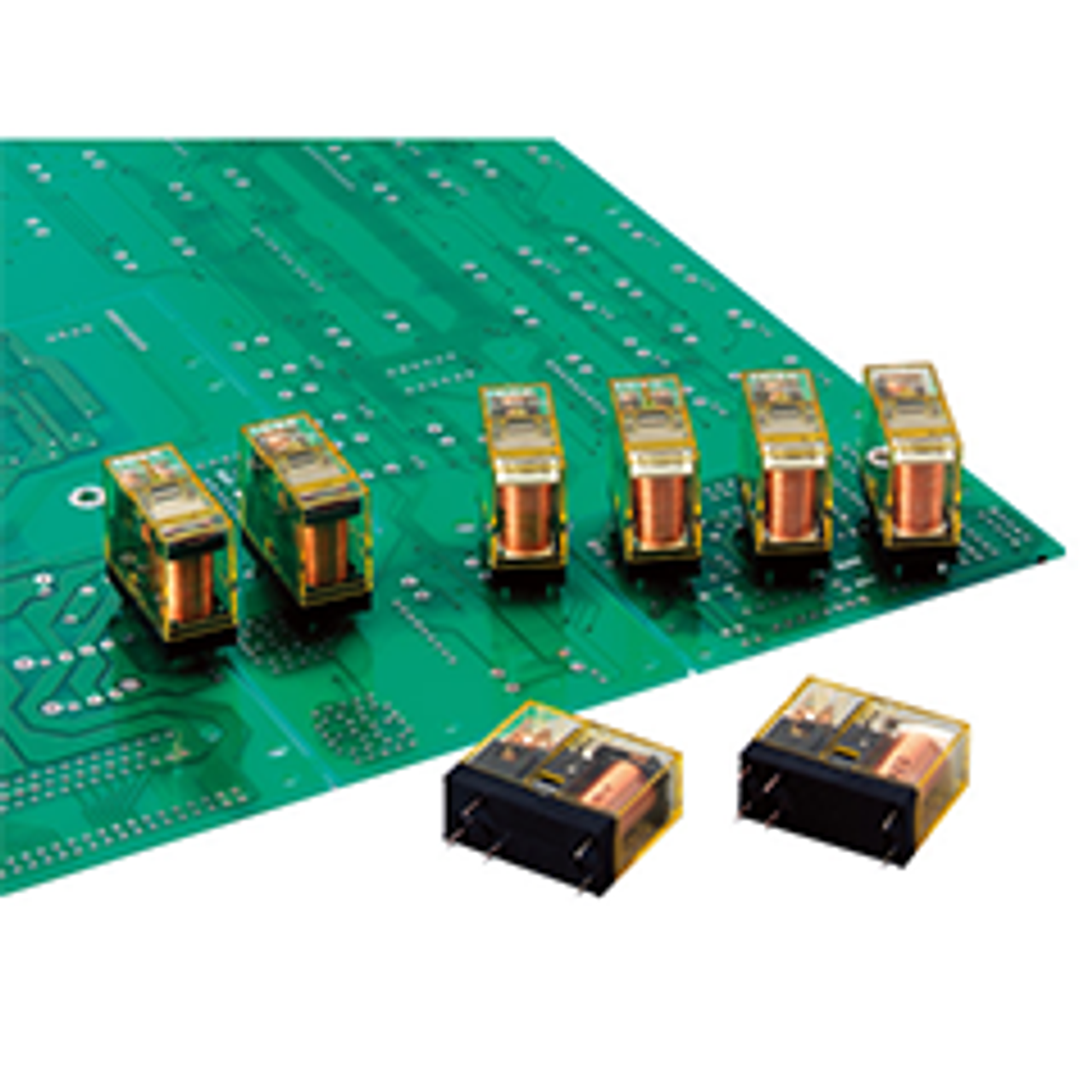

| Series Description: RJ PCB relays, the newest addition to our relay family, were designed with the same attention-to-detail IDEC is known for. The most recent IDEC innovation is a return spring structure for the RJ PCB relays that eliminates unnecessary weak points improving durability, and increasing electrical conductivity and service life. |
|
