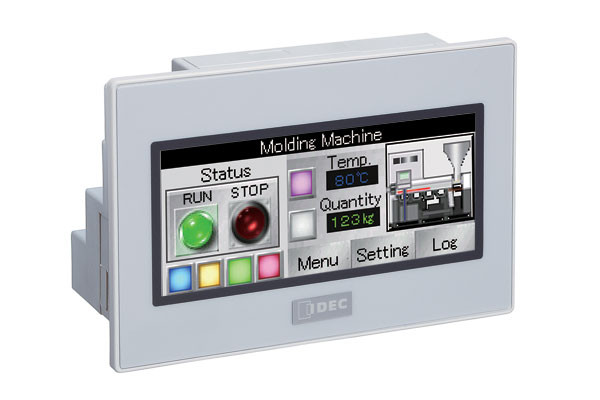

Product Description
Description: Programmable Controllers • Touch Screen • Screen Type: 3.8 TFT 65,536 colors • Total I/O: 14 I/O (8 in, 6 out) • Input Type: Sink • Embedded Analog Inputs: 2pt (0-10VDC, 4-20mA, 10-bit Resolution) • Embedded Analog Outputs: 2pt (0-10VDC, 4-20mA, 10-bit Resolution) • Output Type: Transistor Source • Analog Expansion Cartridges: Yes, up to 2 cartridges • Power Voltage: 24V DC • Remote I/O Master: Yes
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Screen Type | 3.8 TFT 65,536 colors |
| Total I/O | 14 I/O (8 in, 6 out) |
| Input Type | Sink |
| Embedded Analog Inputs | 2pt (0-10VDC, 4-20mA, 10-bit Resolution) |
| Embedded Analog Outputs | 2pt (0-10VDC, 4-20mA, 10-bit Resolution) |
| Output Type | Transistor Source |
| Analog Expansion Cartridges | Yes, up to 2 cartridges |
| Power Voltage | 24V DC |
| Remote I/O Master | Yes |
| Series Features |
| All-in-one touchscreen interface and logic controller FT1A Touch |
| Series Description: The FT1A SmartAXIS Touch combines operator interface and control in a single compact package, all programmable with IDECs PC-based software. The FT1A Touch is available in 12 I/O and 14 I/O configurations with analog I/O expansion capability suitable for advanced analog monitoring and control. |
|
