To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RY4S-ULDC24V |
| Description | Power Relay; 4C 4PDT; 5 A; 24VDC; Non Latching; Socketable; Plug In, Blade |
| Datasheet | Download Datasheet |

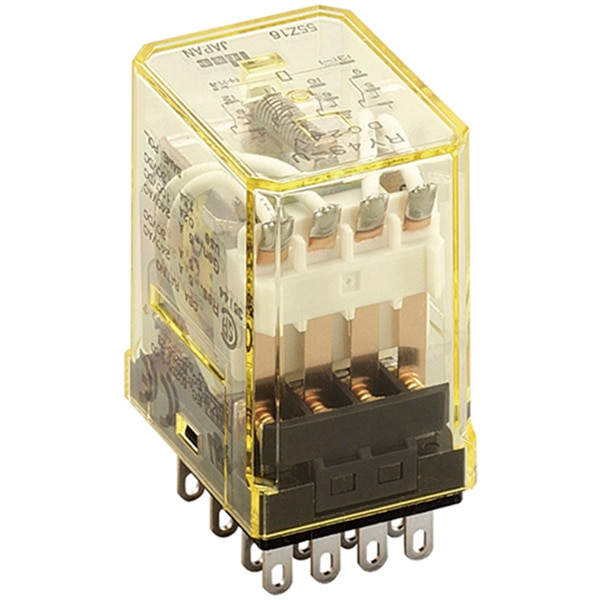

The IDEC RY4S-ULDC24V is a power relay with 4C 4PDT contacts and rated 5 A, driven by a 24VDC coil and drawing 36.9 mA.
It has Socketable mounting and Plug In, Blade terminals, contacts in Silver (Gold Plated) and is supplied with arc barriers, lighted indicator.
| Category | |
| Manufacturer | IDEC |
| Part Status | Discontinued |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Configuration | 4C 4PDT |
| Contact Rating (A) | 5 |
| Contact Material | Silver (Gold Plated) |
| Coil Current (mA) | 36.9 |
| Coil Resistance (ohm) | 650 |
| Coil Type | Non Latching |
| Termination Style | Plug In, Blade |
| Must Operate Voltage | 19.2 V |
| Must Drop-Out Voltage | 2.4 V |
| Features | Arc Barriers, Lighted Indicator |
| Number of Poles | 4 |
| Approvals | UL Recognized (E55996), CSA (LR35144), TÜV, CE |
| Operate Time (ms) | 20 |
| Release Time (ms) | 20 |
| Operating Temperature (°C) | -25...+40 |
| Rated Load AC1 (VA) | 1200 |
| Mechanical Life | 50,000,000 cycles (100,000 cycles) |
