To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RV8H-1S1-AD60 |
| Description | Power Relay; 1C SPDT; 12 A; 60VAC/DC; Non Latching; DIN Rail; Spring Terminal |
| Datasheet | Download Datasheet |

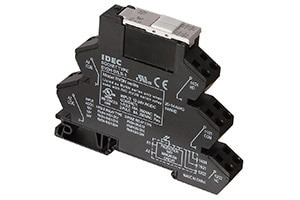

The IDEC RV8H-1S1-AD60 is a power relay with 1C SPDT contacts, rated 12 A and switching up to 250V AC, driven by a 60VAC/DC coil and drawing 7.6 mA.
It has DIN Rail mounting and spring terminals, contacts in AgNi and is supplied with DIN rail socket (Pre-Assembled), green LED, surge suppression.
| Category | |
| Manufacturer | IDEC |
| Mounting Type | DIN Rail |
| Coil Voltage | 60VAC/DC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 12 |
| Switching Voltage | 250V AC |
| Contact Material | AgNi |
| Coil Current (mA) | 7.6 |
| Coil Resistance (ohm) | 7895 |
| Coil Type | Non Latching |
| Termination Style | Spring Terminal |
| Must Operate Voltage | 48 V |
| Must Drop-Out Voltage | 4.2 V |
| Features | DIN Rail Socket (Pre-Assembled), Green LED, Surge Suppression |
| Number of Poles | 1 |
| Approvals | UL/c-UL Listed, CE |
| Operate Time (ms) | 15 |
| Release Time (ms) | 15 |
| Operating Temperature (°C) | -40...+70 |
| Rated Load AC1 (VA) | 3000 |
| Mechanical Life | 10,000,000 cycles (30,000 cycles) |
