To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RR1BA-USDC12V |
| Description | Power Relay; 1C SPDT; 10 A; 12VDC; Non Latching; Flange Mount; Plug In, Blade |
| Datasheet | Download Datasheet |

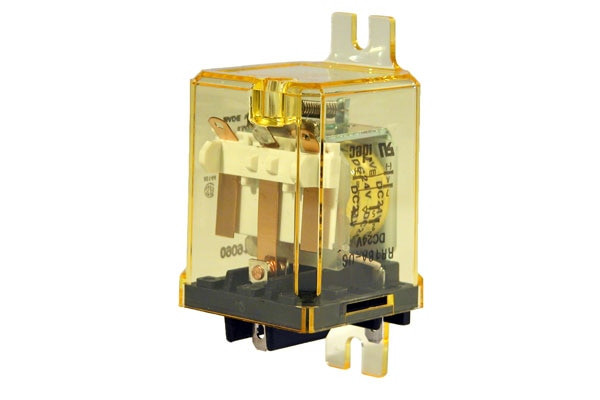

The IDEC RR1BA-USDC12V is a power relay with 1C SPDT contacts, rated 10 A and switching up to 240V AC, 30V DC, driven by a 12VDC coil and drawing 120 mA.
It has Flange Mounting and Plug In, Blade terminals and contacts in Silver.
| Category | |
| Manufacturer | IDEC |
| Mounting Type | Flange Mount |
| Coil Voltage | 12VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 10 |
| Switching Voltage | 240V AC, 30V DC |
| Contact Material | Silver |
| Coil Current (mA) | 120 |
| Coil Resistance (ohm) | 100 |
| Coil Type | Non Latching |
| Termination Style | Plug In, Blade |
| Must Operate Voltage | 9.6 V |
| Must Drop-Out Voltage | 1.2 V |
| Number of Poles | 1 |
| Approvals | UL Recognized, CSA |
| Operate Time (ms) | 25 |
| Release Time (ms) | 25 |
| Operating Temperature (°C) | -25...+40 |
| Rated Load AC1 (VA) | 1650 |
| Mechanical Life | 10,000,000 cycles (200,000 cycles) |
