To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RJ1V-A-A120 |
| Description | Power Relay; 1A SPST-NO; 12 A; 120VAC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

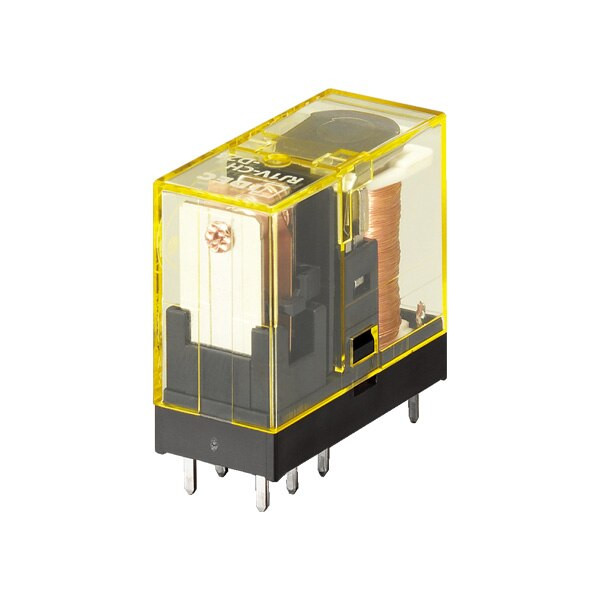

The IDEC RJ1V-A-A120 is a power relay with 1A SPST-NO contacts, rated 12 A and switching up to 250V AC, 125V DC, driven by a 120VAC coil and drawing 7.5 mA.
It has Through Hole mounting and PC Pin terminals and contacts in AgNi.
| Category | |
| Manufacturer | IDEC |
| Mounting Type | Through Hole |
| Coil Voltage | 120VAC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (A) | 12 |
| Switching Voltage | 250V AC, 125V DC |
| Contact Material | AgNi |
| Coil Current (mA) | 7.5 |
| Coil Resistance (ohm) | 6400 |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Must Operate Voltage | 96 V |
| Must Drop-Out Voltage | 36 V |
| Number of Poles | 1 |
| Approvals | UL Recognized (E55996), CSA (LR35144), VDE, CE |
| Operate Time (ms) | 15 |
| Release Time (ms) | 10 |
| Operating Temperature (°C) | -40...+70 |
| Rated Load AC1 (VA) | 3000 |
| Mechanical Life | 30,000,000 cycles (200,000 cycles) |
