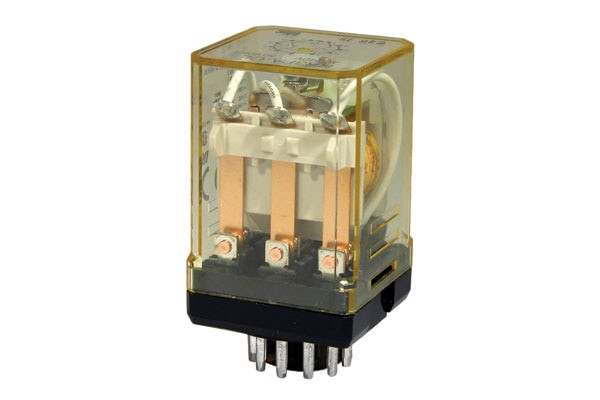

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RR3PA-LCD-DC24V |
| Description | Power Relay; 3C 3PDT; 10 A; 24VDC; Non Latching; Socketable; 11 Pin (Octal) |
| Datasheet | Download Datasheet |
The IDEC RR3PA-LCD-DC24V is a power relay with 3C 3PDT contacts, rated 10 A and switching up to 240V AC, 30V DC, driven by a 24VDC coil and drawing 60 mA.
It has Socketable mounting and Plug In, 11 Pin (Octal) terminals, contacts in Silver and is supplied with lighted indicator, test button, coil suppression diode.
| Category | |
| Manufacturer | IDEC |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Configuration | 3C 3PDT |
| Contact Rating (A) | 10 |
| Switching Voltage | 240V AC, 30V DC |
| Contact Material | Silver |
| Coil Current (mA) | 60 |
| Coil Resistance (ohm) | 400 |
| Coil Type | Non Latching |
| Termination Style | Plug In, 11 Pin (Octal) |
| Must Operate Voltage | 19.2 V |
| Must Drop-Out Voltage | 2.4 V |
| Features | Lighted Indicator, Test Button, Coil Suppression Diode |
| Number of Poles | 3 |
| Approvals | UL Recognized, CSA, TÜV, CE |
| Operate Time (ms) | 25 |
| Release Time (ms) | 25 |
| Operating Temperature (°C) | -25...+40 |
| Rated Load AC1 (VA) | 1650 |
| Mechanical Life | 10,000,000 cycles (200,000 cycles) |
