To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RH4B-UCDC6V |
| Description | Power Relay; 4C 4PDT; 10 A; 6VDC; Non Latching; Socketable; Plug In, Blade; Test Button |
| Datasheet | Download Datasheet |

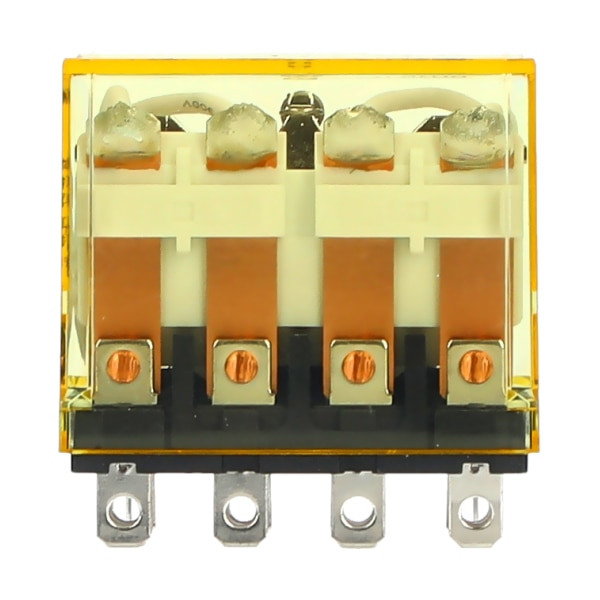

The IDEC RH4B-UCDC6V is a power relay with 4C 4PDT contacts, rated 10 A and switching up to 240V AC, 30V DC, driven by a 6VDC coil and drawing 250 mA.
It has Socketable mounting and Plug In, Blade terminals, contacts in Silver Alloy (Cadmium Free) and is supplied with test button.
| Category | |
| Manufacturer | IDEC |
| Mounting Type | Socketable |
| Coil Voltage | 6VDC |
| Contact Configuration | 4C 4PDT |
| Contact Rating (A) | 10 |
| Switching Voltage | 240V AC, 30V DC |
| Contact Material | Silver Alloy (Cadmium Free) |
| Coil Current (mA) | 250 |
| Coil Resistance (ohm) | 24 |
| Coil Type | Non Latching |
| Termination Style | Plug In, Blade |
| Must Operate Voltage | 4.8 V |
| Must Drop-Out Voltage | 0.6 V |
| Features | Test Button |
| Number of Poles | 4 |
| Approvals | UL Recognized, CSA, TÜV, CE |
| Operate Time (ms) | 25 |
| Release Time (ms) | 25 |
| Operating Temperature (°C) | -25...+70 |
| Rated Load AC1 (VA) | 1650 |
| Mechanical Life | 50,000,000 cycles (200,000 cycles) |
