To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RH3B-ULAC240V |
| Description | Power Relay; 3C 3PDT; 10A; 240VAC; Non Latching; Socketable; Blade; LED |
| Datasheet | Download Datasheet |

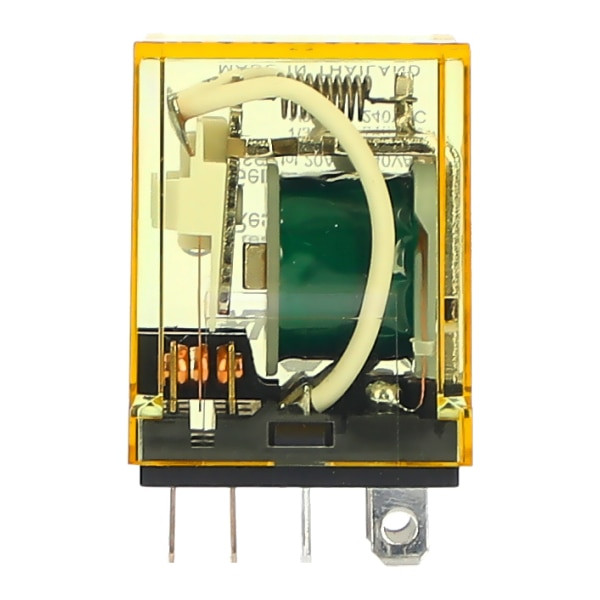

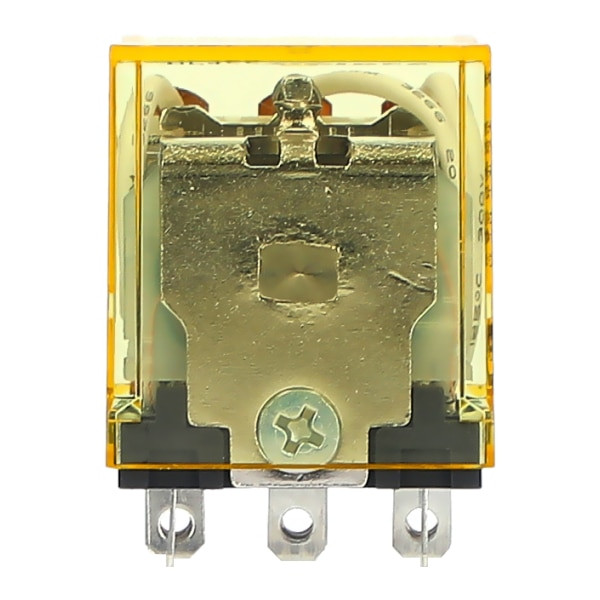

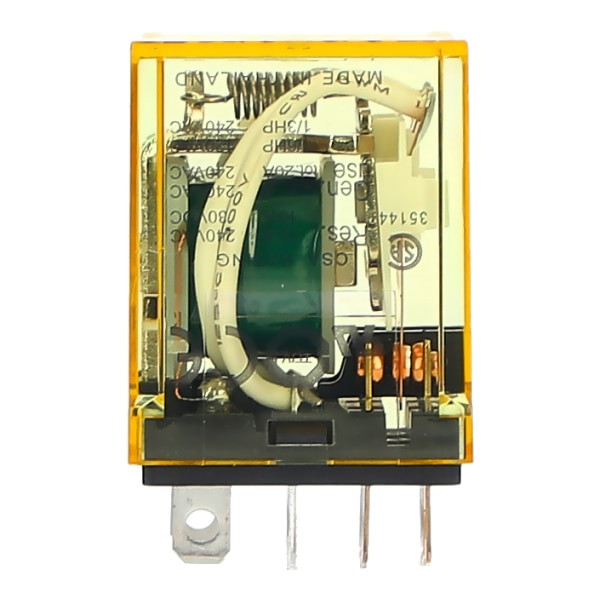

The IDEC RH3B-ULAC240V is a power relay with 3C 3PDT contacts, rated 10 A and switching up to 240V AC, 30V DC, driven by a 240VAC coil and drawing 7.1 mA.
It has Socketable mounting and Plug In, Blade terminals, contacts in Silver Alloy (Cadmium Free) and is supplied with lighted indicator.
| Category | |
| Manufacturer | IDEC |
| Mounting Type | Socketable |
| Coil Voltage | 240VAC |
| Contact Configuration | 3C 3PDT |
| Contact Rating (A) | 10 |
| Switching Voltage | 240V AC, 30V DC |
| Contact Material | Silver Alloy (Cadmium Free) |
| Coil Current (mA) | 7.1 |
| Coil Resistance (ohm) | 12100 |
| Coil Type | Non Latching |
| Termination Style | Plug In, Blade |
| Must Operate Voltage | 192 V |
| Must Drop-Out Voltage | 72 V |
| Features | Lighted Indicator |
| Number of Poles | 3 |
| Approvals | UL Recognized, CSA, TÜV, CE |
| Operate Time (ms) | 25 |
| Release Time (ms) | 25 |
| Operating Temperature (°C) | -25...+40 |
| Rated Load AC1 (VA) | 1650 |
| Mechanical Life | 50,000,000 cycles (200,000 cycles) |
