To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RH2B-UTAC110-120V |
| Description | Power Relay; 2C DPDT; 10 A; 110-120VAC; Non Latching; Top Bracket; Plug In, Blade |
| Datasheet | Download Datasheet |

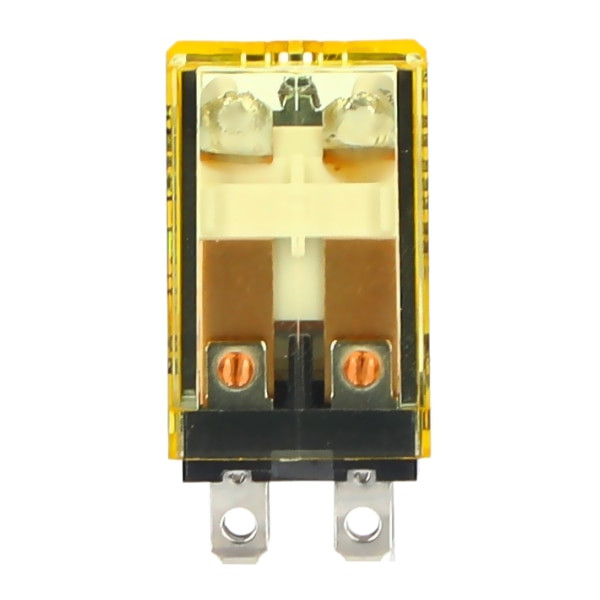

The IDEC RH2B-UTAC110-120V is a power relay with 2C DPDT contacts, rated 10 A and switching up to 240V AC, 30V DC, driven by a 110-120VAC coil and drawing 8.0-9.2 mA.
It has Top Bracket mounting and Plug In, Blade terminals and contacts in Silver Alloy (Cadmium Free).
| Category | |
| Manufacturer | IDEC |
| Mounting Type | Top Bracket |
| Coil Voltage | 110-120VAC |
| Contact Configuration | 2C DPDT |
| Contact Rating (A) | 10 |
| Switching Voltage | 240V AC, 30V DC |
| Contact Material | Silver Alloy (Cadmium Free) |
| Coil Current (mA) | 8.0-9.2 |
| Coil Type | Non Latching |
| Termination Style | Plug In, Blade |
| Must Operate Voltage | 88-96 V |
| Must Drop-Out Voltage | 33-36 V |
| Number of Poles | 2 |
| Approvals | UL Recognized, CSA, TÜV, CE |
| Operate Time (ms) | 20 |
| Release Time (ms) | 20 |
| Operating Temperature (°C) | -25...+70 |
| Rated Load AC1 (VA) | 1650 |
| Mechanical Life | 50,000,000 cycles (500,000 cycles) |
