To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | RF2V-1A1B-D24 |
| Description | Safety Relay; 1A1B SPST-NO/SPST-NC; 6 A; 24VDC; PC Pin |
| Datasheet | Download Datasheet |

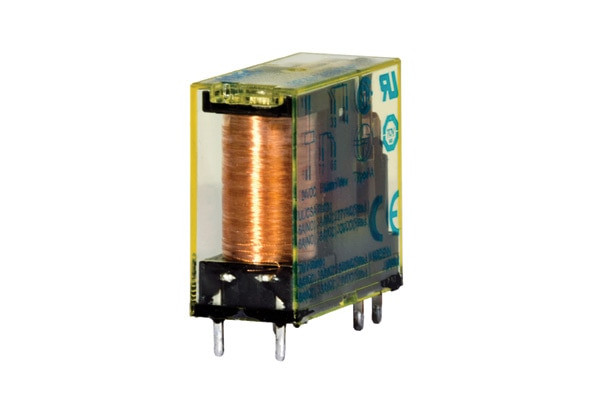

The IDEC RF2V-1A1B-D24 is a safety relay with 1A1B SPST-NO/SPST-NC contacts and rated 6 A, driven by a 24VDC coil.
Its contacts are forcibly guided (mechanically linked) to EN 50205, so a normally open and a normally closed contact can never be closed at the same time. That is what lets a safety circuit detect a welded contact.
It has Through Hole mounting and PC Pin terminals and contacts in AgNi + Au.
| Category | |
| Manufacturer | IDEC |
| Contact Configuration | 1A1B SPST-NO/SPST-NC |
| Number of Poles | 2 |
| Contact Rating (A) | 6 |
| Coil Voltage | 24VDC |
| Forcibly Guided Contacts | Yes |
| Forcibly Guided Class | Type A, EN 50205 |
| Contact Material | AgNi + Au |
| Rated Voltage | 250 V AC, 125 V DC |
| Coil Operating Range | 18...26.4 V (29 mA at nominal) |
| Coil Power | 0.7 W |
| Must Drop-Out Voltage | 0.1 UN |
| Operate/Release Time | 15/10 ms |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature (°C) | -40...+70 |
| Environmental Protection | RT II (flux proof) |
| Approvals | UL Recognized, CSA, TÜV |
