To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | YC1N-220A120 |
| Description | Contactor; 220 A; 3A 3PST-NO; 120V AC |
| Datasheet | Download Datasheet |

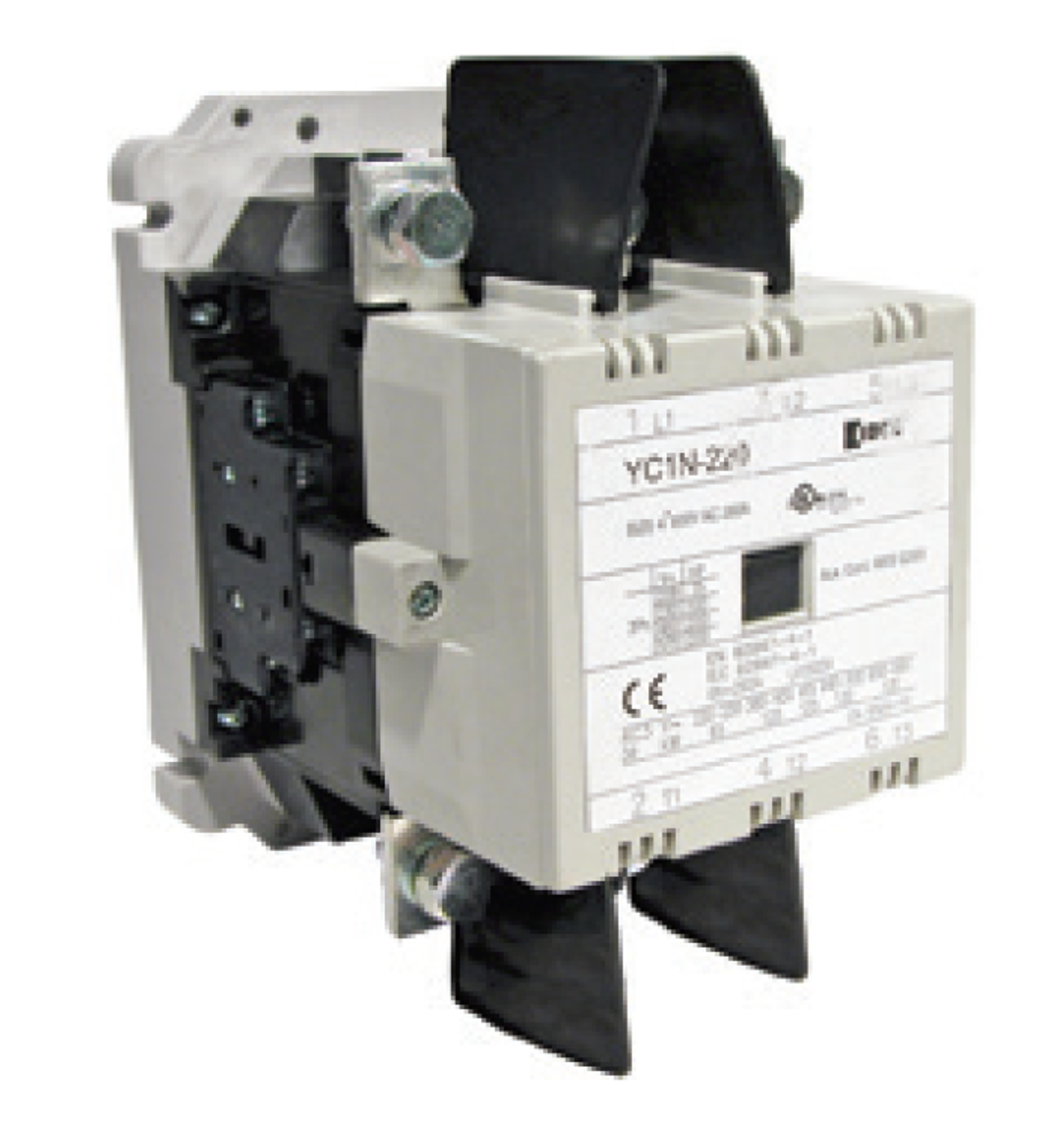

The IDEC YC1N-220A120 is a 3-pole 220 A contactor with three normally open main contacts (3PST-NO), driven by a 120V AC coil. A 2NO-2NC auxiliary contact is built in. It is roughly equivalent to NEMA size 4. It is panel mounted and has screw terminals.
Motor rating: 3-phase: 75 HP at 200-208 V, 100 HP at 230-240 V, 200 HP at 440-480 V, 200 HP at 575 V (UL 508). Rated voltage: 600 V AC (UL), 690 V AC (IEC). Coil: 300 VA inrush, 63 VA sealed. Contacts: silver alloy. Life: 5,000,000 operations mechanical, 1,000,000 electrical. It operates from -20 to +55 °C and stores from -40 to +70 °C. Approvals: cULus Listed, CE (IEC 60947, UL 508, CSA C22.2).
| Category | |
| Manufacturer | IDEC |
