To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | NRAS3100-15A-MA |
| Description | Magnetic-Hydraulic Breaker; 15 A; 3-Pole; MA (AC, Slow / Motor) |
| Datasheet | Download Datasheet |

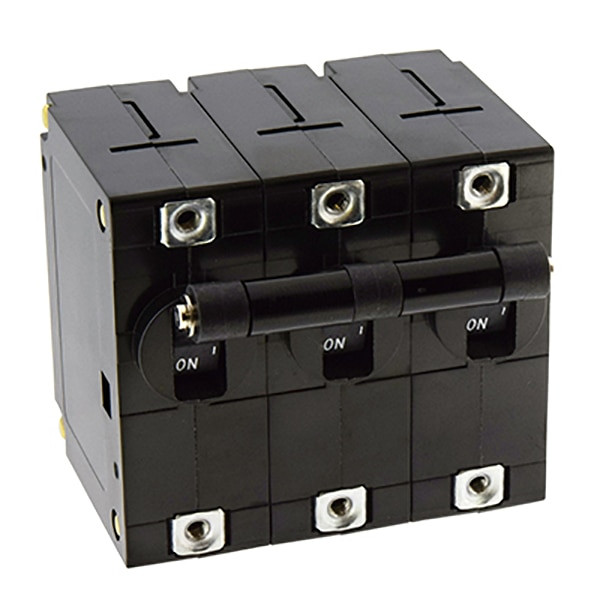

The IDEC NRAS3100-15A-MA is a 3-pole 15 A magnetic-hydraulic circuit protector with a lever actuator for a round panel cutout, rated 250V AC, 50/60 Hz and 65V DC. It is a UL 1077 supplementary protector, not for branch circuit protection.
It has IDEC's MA time-delay curve, a slow curve for motor loads that draw inrush for a long time. All poles trip together and the levers are mechanically tied. The trip current does not drift with temperature; only the delay does.
Trip times at 25 °C: No trip at 100%; 60-900 s at 125%; 30-260 s at 150%; 9-70 s at 200%; 1.5-8 s at 400%. Interrupting rating: 1,000 A at 250V AC; 1,000 A at 65V DC. Terminals: main: 0.250 in quick-connect tab (NRT screw terminal adapter available). Life: 10,000 operations minimum. It operates from -40 to +85 °C. Approvals: UL Recognized (UL 1077), cUL, VDE (EN 60934); UL file E68029.
| Category | |
| Manufacturer | IDEC |
| Model | NRAS |
