To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | IDEC |
| Manufacturer Product Number | FC6A-C16K1DE |
| Description | PLC; 16 I/O; Transistor Sink; 12V DC |
| Datasheet | Download Datasheet |

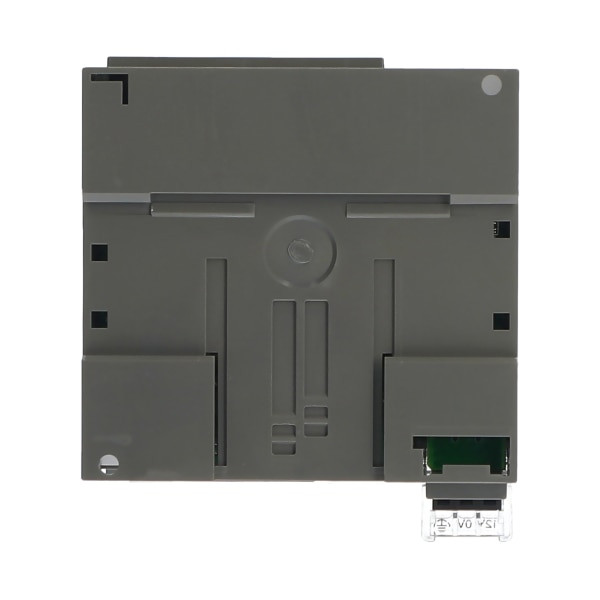

The IDEC FC6A-C16K1DE is a MicroSmart FC6A PLC with 16 I/O (9 inputs, 7 transistor sink outputs), powered from 12V DC.
Built in: 1 analog input (0-10 V DC) and a 100kHz high-speed counter. Communication: 1 Ethernet port; 1 serial port (RS232C/RS485); USB Mini-B programming port; Modbus RTU. Programming: Ladder, Script. Memory: 384KB program, 56,000 data registers, SD card slot. Expansion: up to 3 expansion modules; 7 serial ports max.
Terminals: screw terminal. It operates from -25 to +65 °C. Protection: IP20. Approvals: cULus.
| Category | |
| Manufacturer | IDEC |
| Model | FC6A |
| Programming Language | Ladder/Script |
| Communication | 1 Ethernet port; 1 serial port (RS232C/RS485); USB Mini-B programming port; Modbus RTU |
| Total I/O | 16 I/O |
| Number of Inputs | 9 |
| Number of Outputs | 7 |
| Analog I/O | 1 analog input (0-10 V DC) |
| High-Speed Counter | 100kHz |
| Output Type | Transistor Sink |
| Expansion Capacity | Up to 3 expansion modules; 7 serial ports max |
| Input Voltage | 12V DC |
| Memory | 384KB program, 56,000 data registers, SD card slot |
| Termination Style | Screw Terminal |
| Operating Temperature (°C) | -25...+65 |
| Protection Category | IP 20 |
| Approvals | cULus |
