To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | EN4SD302420WGY |
| Description | Wallmount Enclosure; Steel; 30x24x20 in; NEMA 4; 1 Door; Window; ANSI 61 Gray; w/Panel |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

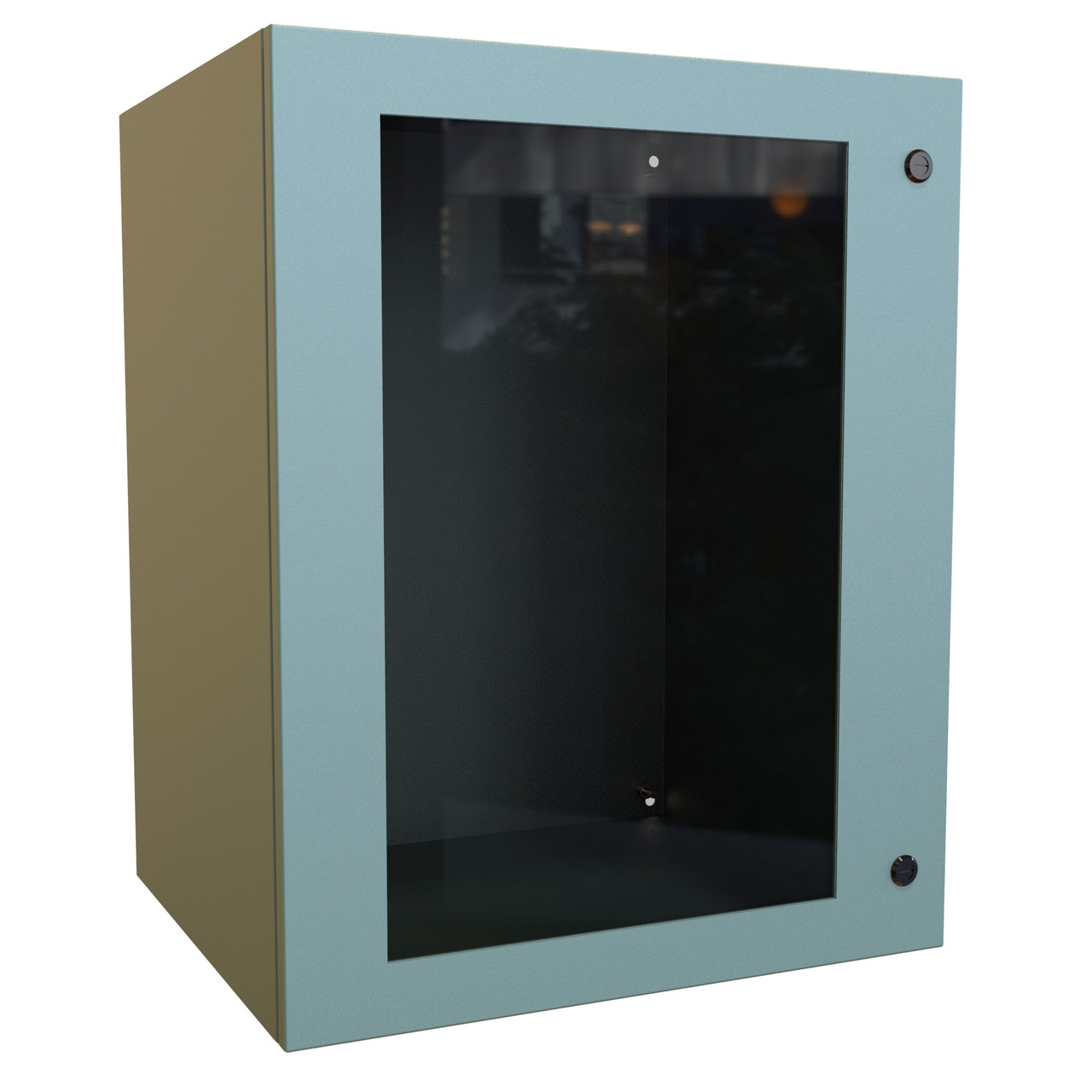

The Hammond Manufacturing EN4SD302420WGY is a mid-size 30 x 24 x 20 in NEMA 4 wallmount enclosure, made from mild steel, finished in ANSI 61 Gray and fitted with a single window door.
The removable inner panel measures 28.2 x 22.2 in, giving 626 sq in (4,039 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Mild Steel |
| NEMA Type Rating | 4 |
| Size | 30 x 24 x 20 in (762 x 610 x 508 mm) (L x W x H) |
| Face Area | 720 in2 (4,648 cm2) |
| Panel Height | 28.20 in (716 mm) |
| Panel Width | 22.20 in (564 mm) |
| Panel Included | Yes |
| Door Configuration | Single Door |
| Top Style | Flat |
| Window | Yes |
| Finish | Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG). |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 3R, 4 and 12, CSA Type 3R, 4 and 12 |
