To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | EN4SD30166GY |
| Description | Wallmount Enclosure; Steel; 30x16x6 in; NEMA 4; 1 Door; ANSI 61 Gray; IP66; With Panel |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

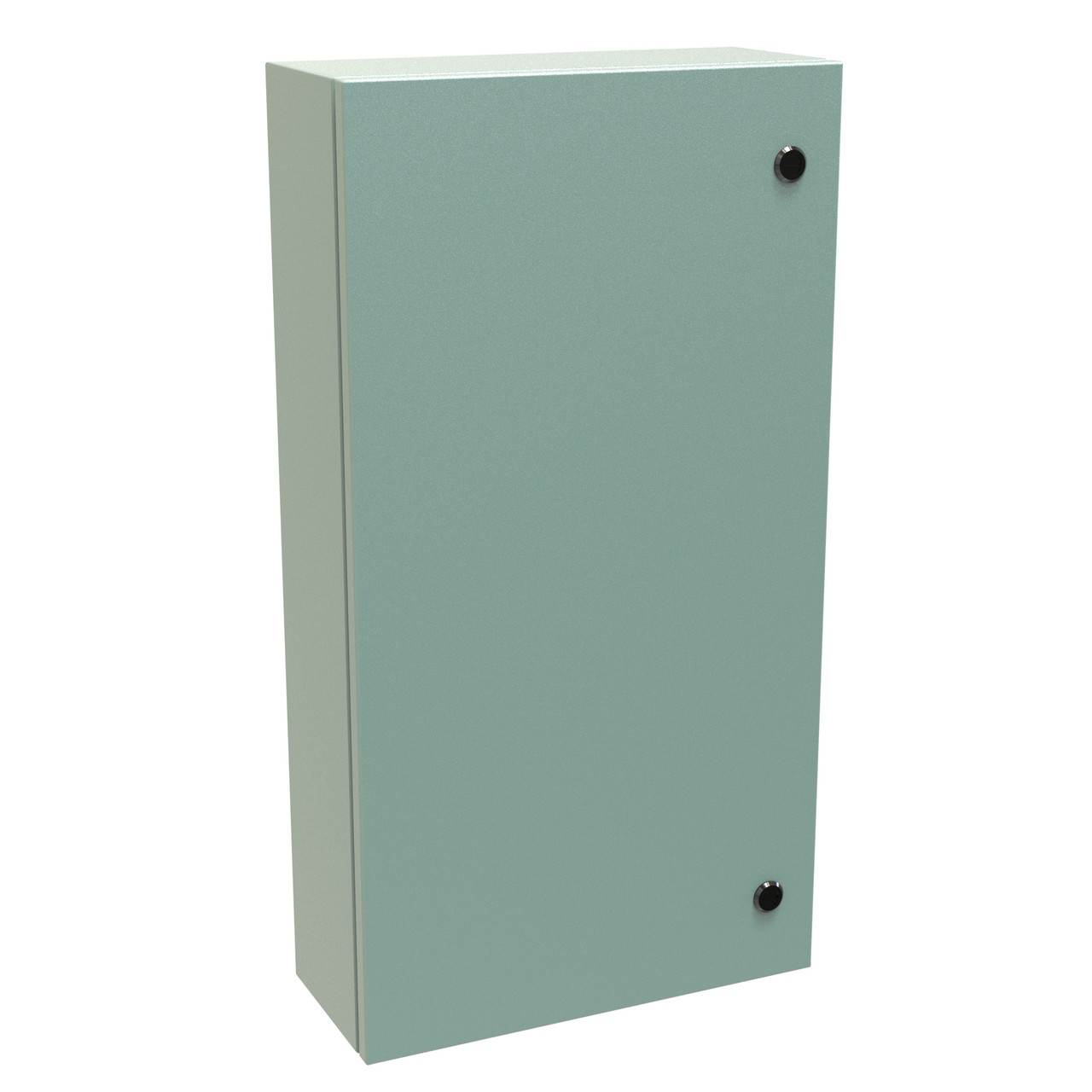

The Hammond Manufacturing EN4SD30166GY is a mid-size 30 x 16 x 6 in NEMA 4 wallmount enclosure, made from mild steel, finished in ANSI 61 Gray and fitted with a single door.
The removable inner panel measures 28.2 x 14.2 in, giving 400 sq in (2,583 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Mild Steel |
| NEMA Type Rating | 4 |
| IP Rating | IP66 |
| Size | 30 x 16 x 6 in (762 x 406 x 152 mm) (L x W x H) |
| Face Area | 480 in2 (3,094 cm2) |
| Panel Height | 28.20 in (716 mm) |
| Panel Width | 14.20 in (361 mm) |
| Panel Included | Yes |
| Door Configuration | Single Door |
| Top Style | Flat |
| Window | No |
| Finish | Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG). |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 3R, 4, and 12, CSA Type 3R, 4, and 12, Mounting foot kit required to maintain UL/CSA external mounting requirements, Sizes >24" (600mm) wide require inner panel to maintain UL/CSA |
| Complies With | IEC 60529, IP66, NEMA Type 3R, 4, and 12 |
