To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1422VW12 |
| Description | Wallmount Enclosure; Steel; 48x42x12 in; NEMA 12; Two Door; ANSI 61 Gray; 14 ga body; IP54 |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

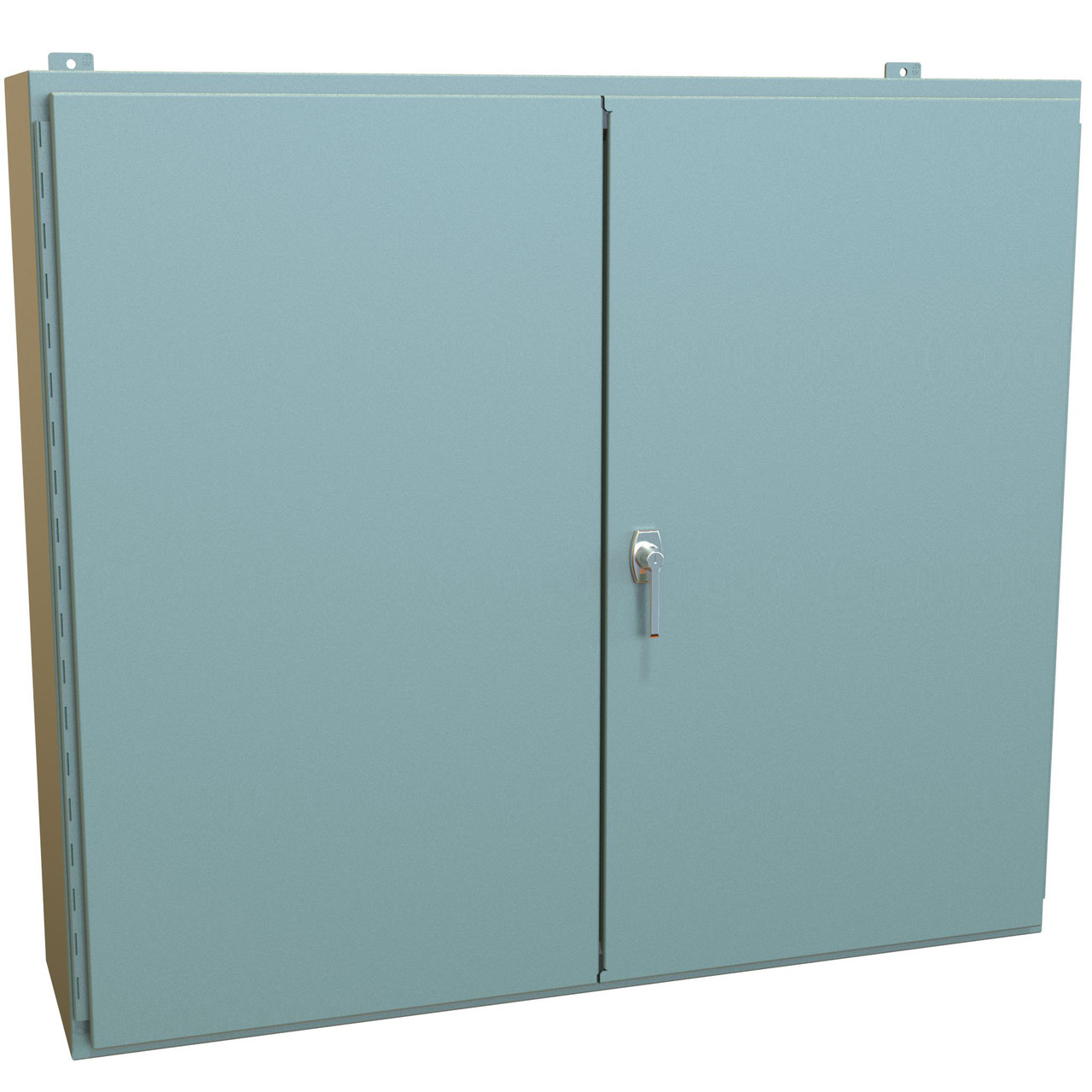

The Hammond Manufacturing 1422VW12 is a large-format 48 x 42 x 12 in NEMA 12 wallmount enclosure, formed from 14 gauge mild steel, finished in ANSI 61 Gray and fitted with two doors and a removable 12 gauge inner panel.
The removable inner panel measures 39 x 45 in, giving 1,755 sq in (11,323 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Mild Steel |
| Body Gauge | 14 |
| Panel Gauge | 12 |
| NEMA Type Rating | 12 |
| IP Rating | IP54 |
| Size | 48 x 42 x 12 in (1219 x 1067 x 305 mm) (L x W x H) |
| Face Area | 2016 in2 (13,007 cm2) |
| Panel Height | 39.00 in (991 mm) |
| Panel Width | 45.00 in (1143 mm) |
| Panel Included | Yes |
| Door Configuration | Two Door |
| Top Style | Flat |
| Window | No |
| Finish | Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the inside and outside. Removable inner panel is finished in white powder coating. |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 12, CSA Type 12 |
| Complies With | NEMA Type 12, IEC 60529, IP54 |
