To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1418ER8LP |
| Description | Wallmount Enclosure; Steel; 24x20x8 in; NEMA 4, 12; 1 Door; ANSI 61 Gray; 14 ga body; IP66 |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

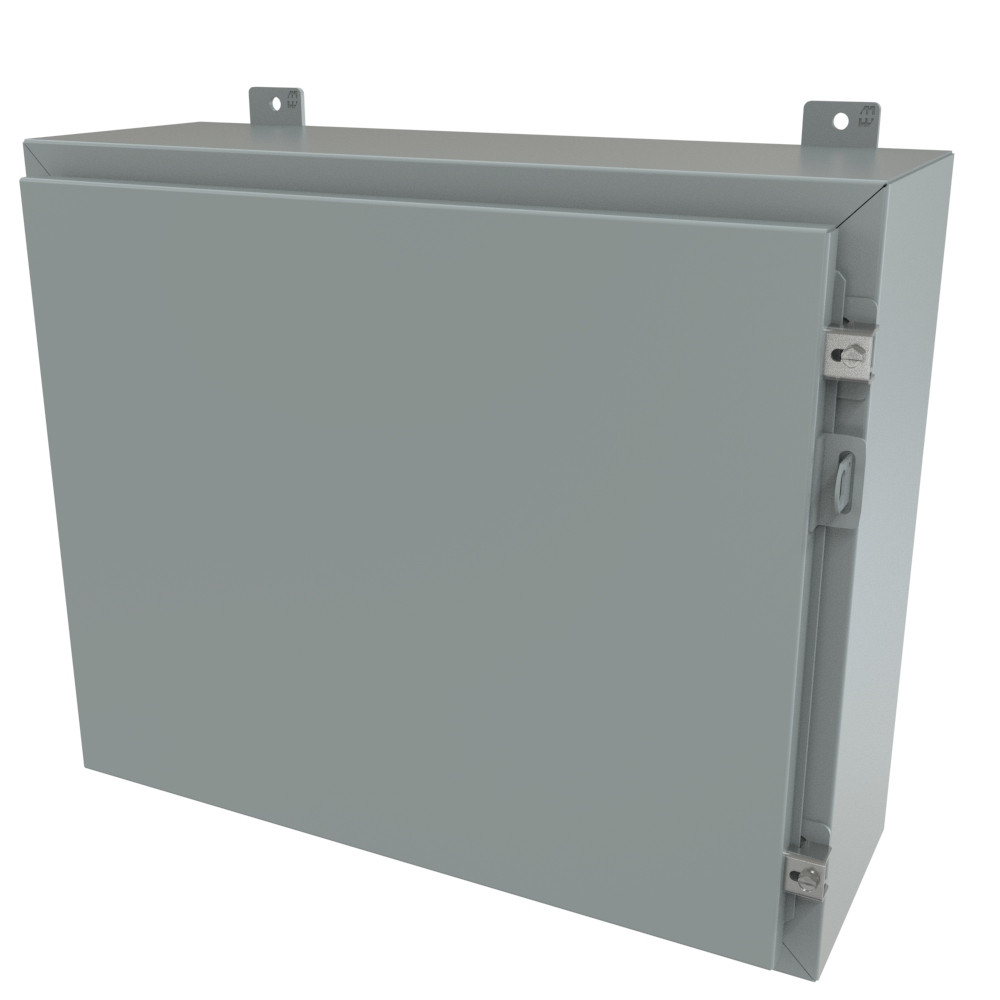

The Hammond Manufacturing 1418ER8LP is a mid-size 24 x 20 x 8 in NEMA 4, 12 wallmount enclosure, formed from 14 gauge mild steel, finished in ANSI 61 Gray and fitted with a single door.
This enclosure ships less panel. A separately ordered inner panel of 17 x 21 in fits it, giving 357 sq in (2,303 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Mild Steel |
| Body Gauge | 14 |
| NEMA Type Rating | 4, 12 |
| IP Rating | IP66 |
| Size | 24 x 20 x 8 in (610 x 508 x 203 mm) (L x W x H) |
| Face Area | 480 in2 (3,099 cm2) |
| Panel Height | 17.00 in (432 mm) |
| Panel Width | 21.00 in (533 mm) |
| Panel Included | No |
| Door Configuration | Single Door |
| Top Style | Flat |
| Window | No |
| Finish | Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating. |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 3R,12, 13, 4 cUL Type 3R, 12, 13, 4 |
| Complies With | NEMA Type 3R, 4, 12 and 13, IEC 60529, IP66 |
