To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1554PB2D |
| Description | Pushbutton Enclosure; 2; 30.5 mm; NEMA 4, 4X; 6.3x3.54x3.56 in |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

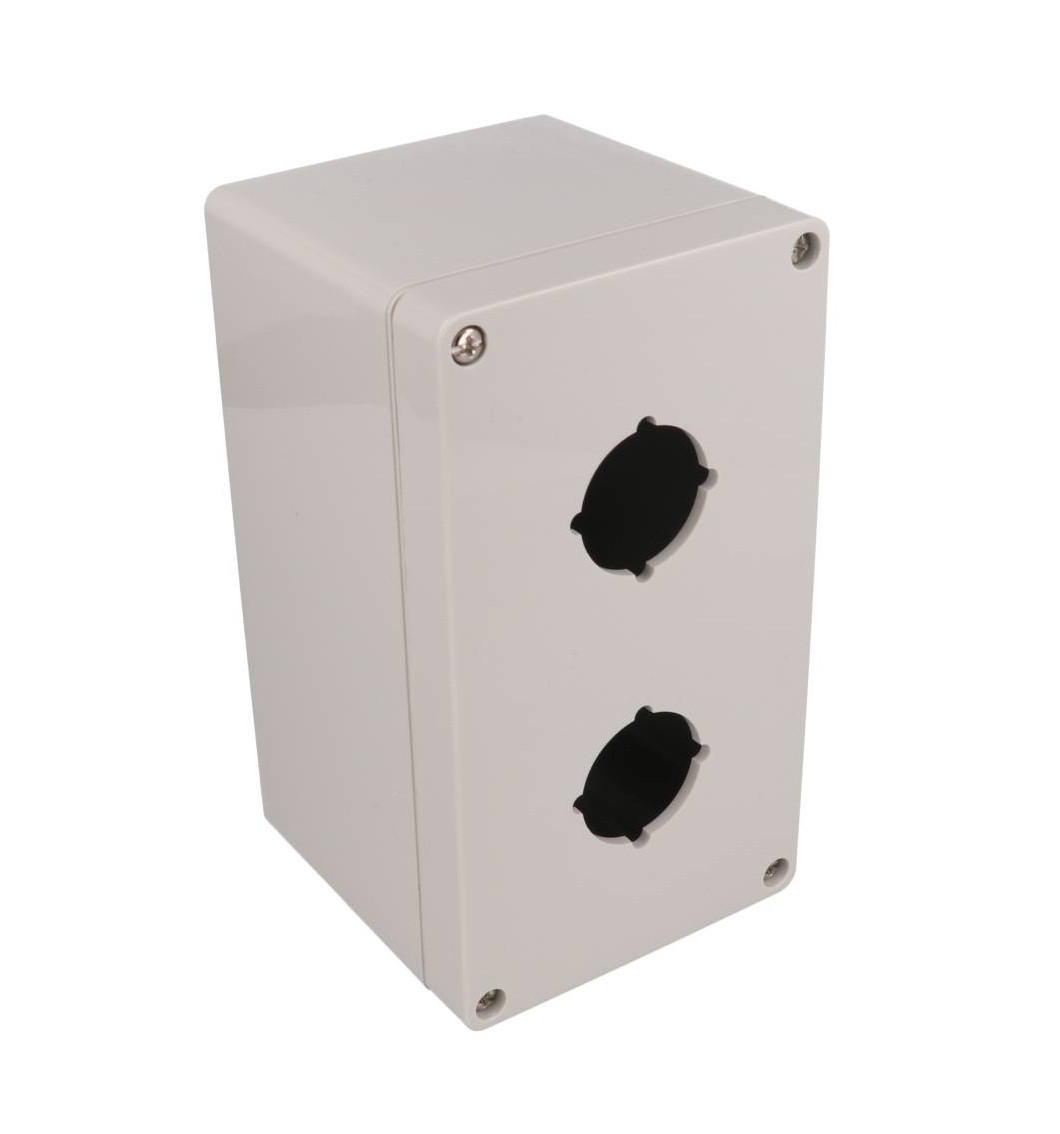

The Hammond Manufacturing 1554PB2D is a compact 6.3 x 3.54 x 3.56 in NEMA 4, 4X pushbutton enclosure, made from polycarbonate, finished in Gray and fitted with a removable 16 gauge inner panel.
The removable inner panel measures 5.8 x 3 in, giving 17 sq in (112 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Holes | 2 |
| Button Size | 30.5 mm |
| Material | Polycarbonate |
| NEMA Type Rating | 4, 4X |
| Enclosure Height | 6.30 in (160 mm) |
| Enclosure Width | 3.54 in (90 mm) |
| Enclosure Depth | 3.56 in (90 mm) |
| Depth with Lid (in) | 3.56 |
| Size | 6.3 x 3.54 x 3.56 in (160 x 90 x 90 mm) (L x W x H) |
| Panel Height | 5.80 in (147 mm) |
| Panel Width | 3.00 in (76 mm) |
| Panel Included | Yes |
| Panel Gauge | 16 |
| Finish | Color is light gray (RAL 7035) |
| Color | Gray |
| Standards | IP66 |
