To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1554MPB6A |
| Description | Pushbutton Enclosure; 6; 22.5 mm; NEMA 4, 4X; 9.45x6.3x3.54 in |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

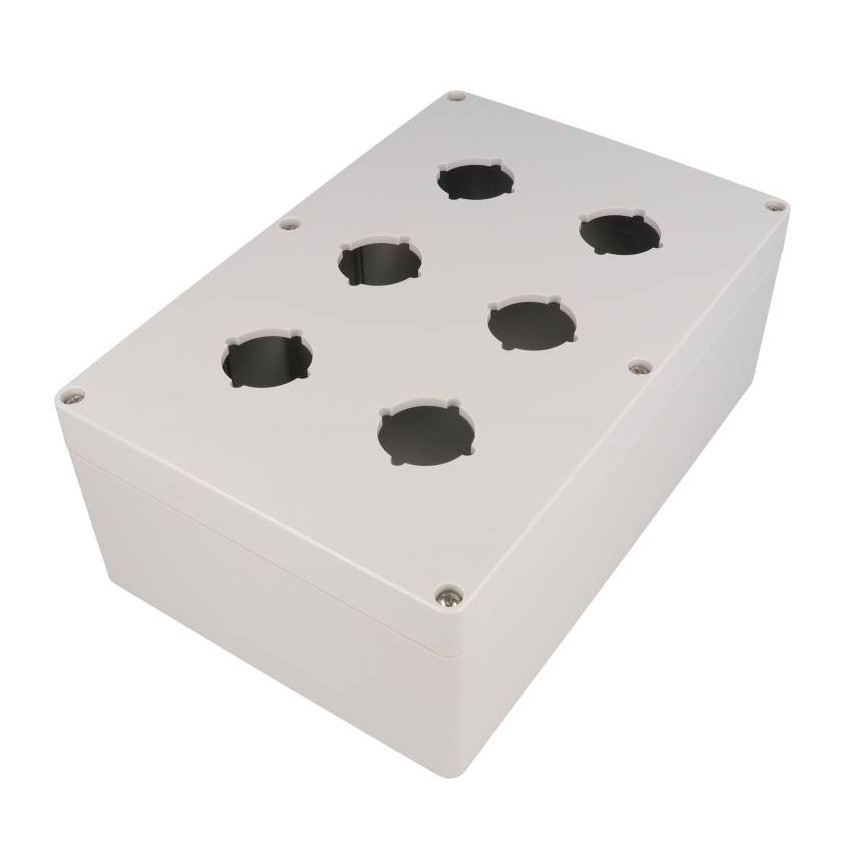

The Hammond Manufacturing 1554MPB6A is a compact 9.45 x 6.3 x 3.54 in NEMA 4, 4X pushbutton enclosure, made from polycarbonate, finished in Gray and fitted with a removable 16 gauge inner panel.
The removable inner panel measures 8.93 x 5.73 in, giving 51 sq in (330 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Holes | 6 |
| Button Size | 22.5 mm |
| Material | Polycarbonate |
| NEMA Type Rating | 4, 4X |
| Enclosure Height | 9.45 in (240 mm) |
| Enclosure Width | 6.30 in (160 mm) |
| Enclosure Depth | 3.54 in (90 mm) |
| Depth with Lid (in) | 3.54 |
| Size | 9.45 x 6.3 x 3.54 in (240 x 160 x 90 mm) (L x W x H) |
| Panel Height | 8.93 in (227 mm) |
| Panel Width | 5.73 in (146 mm) |
| Panel Included | Yes |
| Panel Gauge | 16 |
| Finish | Color is light gray (RAL 7035) |
| Color | Gray |
| Standards | IP66 |
