| Manufacturer | Hammond |
| Manufacturer Product Number | 1554MPB4 |
| Description | Pushbutton Enclosure; 4; 22.5 mm; NEMA 4, 4X; 7.87x4.72x3.56 in |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

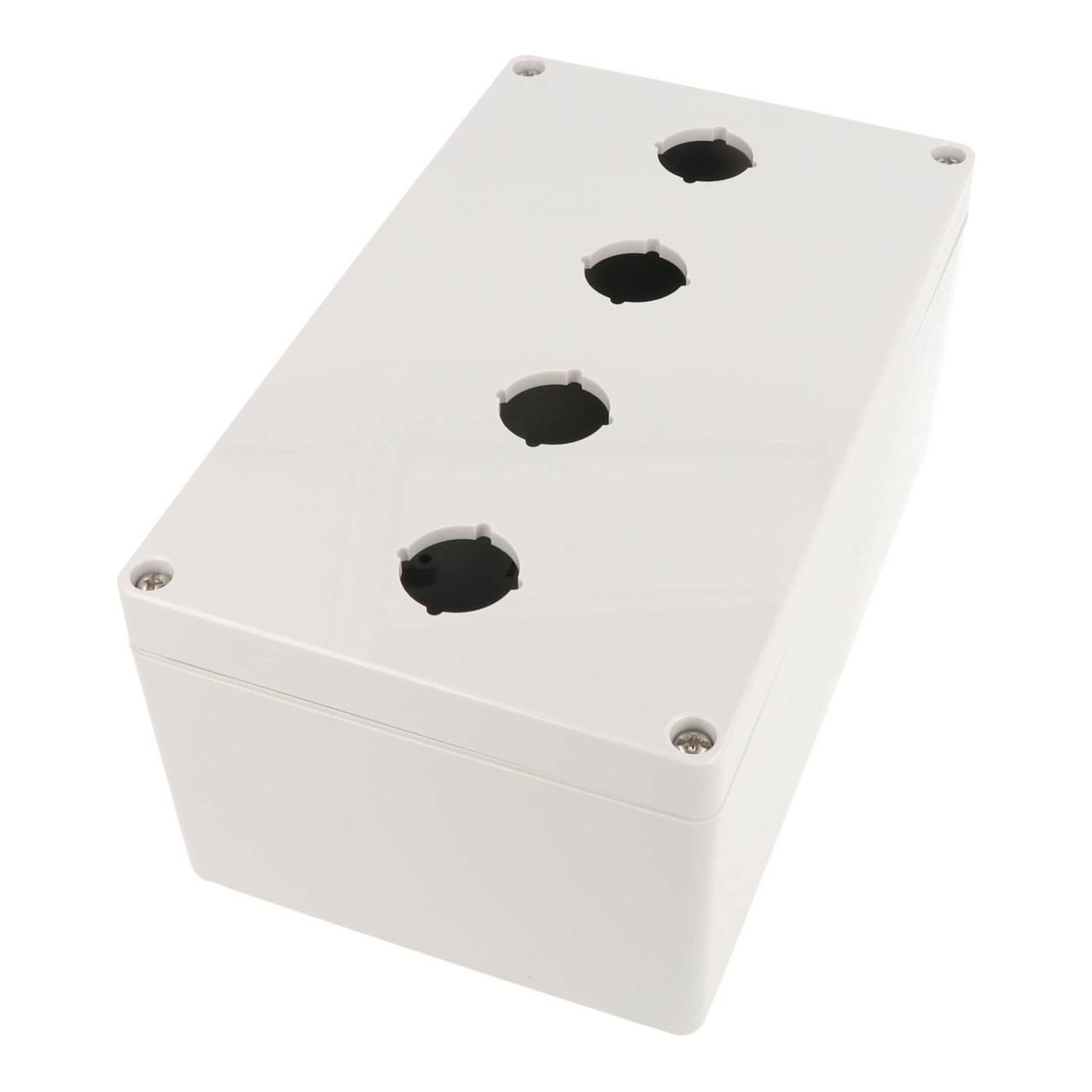

The Hammond Manufacturing 1554MPB4 is a compact 7.87 x 4.72 x 3.56 in NEMA 4, 4X pushbutton enclosure, made from polycarbonate, finished in Gray and fitted with a removable 16 gauge inner panel.
The removable inner panel measures 7.6 x 4.2 in, giving 32 sq in (206 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Holes | 4 |
| Button Size | 22.5 mm |
| Material | Polycarbonate |
| NEMA Type Rating | 4, 4X |
| Enclosure Height | 7.87 in (200 mm) |
| Enclosure Width | 4.72 in (120 mm) |
| Enclosure Depth | 3.56 in (90 mm) |
| Depth with Lid (in) | 3.56 |
| Size | 7.87 x 4.72 x 3.56 in (200 x 120 x 90 mm) (L x W x H) |
| Panel Height | 7.60 in (193 mm) |
| Panel Width | 4.20 in (107 mm) |
| Panel Included | Yes |
| Panel Gauge | 16 |
| Finish | Color is light gray (RAL 7035) |
| Color | Gray |
| Standards | IP66 |
