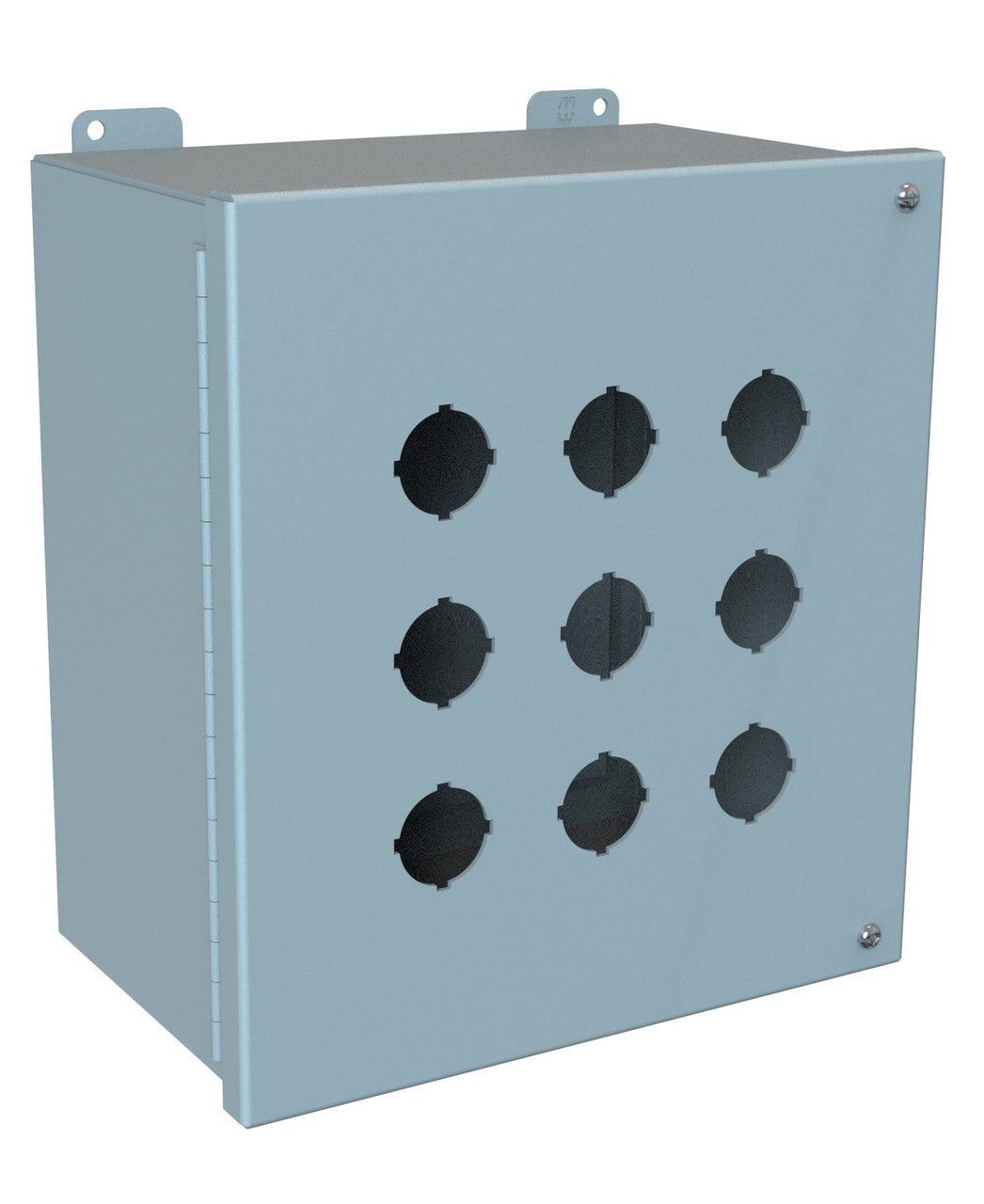

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1489P42 |
| Description | Pushbutton Enclosure; 42; 30.5 mm; NEMA 12; 19.5x16.25x6 in; Mild Steel |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |
The Hammond Manufacturing 1489P42 is a mid-size 19.5 x 16.25 x 6 in NEMA 12 pushbutton enclosure, formed from 14 gauge mild steel, finished in ANSI 61 Gray and fitted with a removable 14 gauge inner panel.
The removable inner panel measures 17.5 x 14.25 in, giving 249 sq in (1,609 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Holes | 42 |
| Button Size | 30.5 mm |
| Material | Mild Steel |
| NEMA Type Rating | 12 |
| IP Rating | IP54 |
| Enclosure Height | 19.50 in (495 mm) |
| Enclosure Width | 16.25 in (413 mm) |
| Enclosure Depth | 6.00 in (152 mm) |
| Size | 19.5 x 16.25 x 6 in (495 x 413 x 152 mm) (L x W x H) |
| Panel Height | 17.50 in (445 mm) |
| Panel Width | 14.25 in (362 mm) |
| Panel Included | Yes |
| Body Gauge | 14 |
| Panel Gauge | 14 |
| Finish | Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating. Removable inner panel is finished in white powder coating. |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 12, CSA Type 12 |
