To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1435MS16H |
| Description | Pushbutton Enclosure; 6; 22.5 mm; NEMA 4, 4X; 9.5x6.25x3 in; Stainless Steel |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

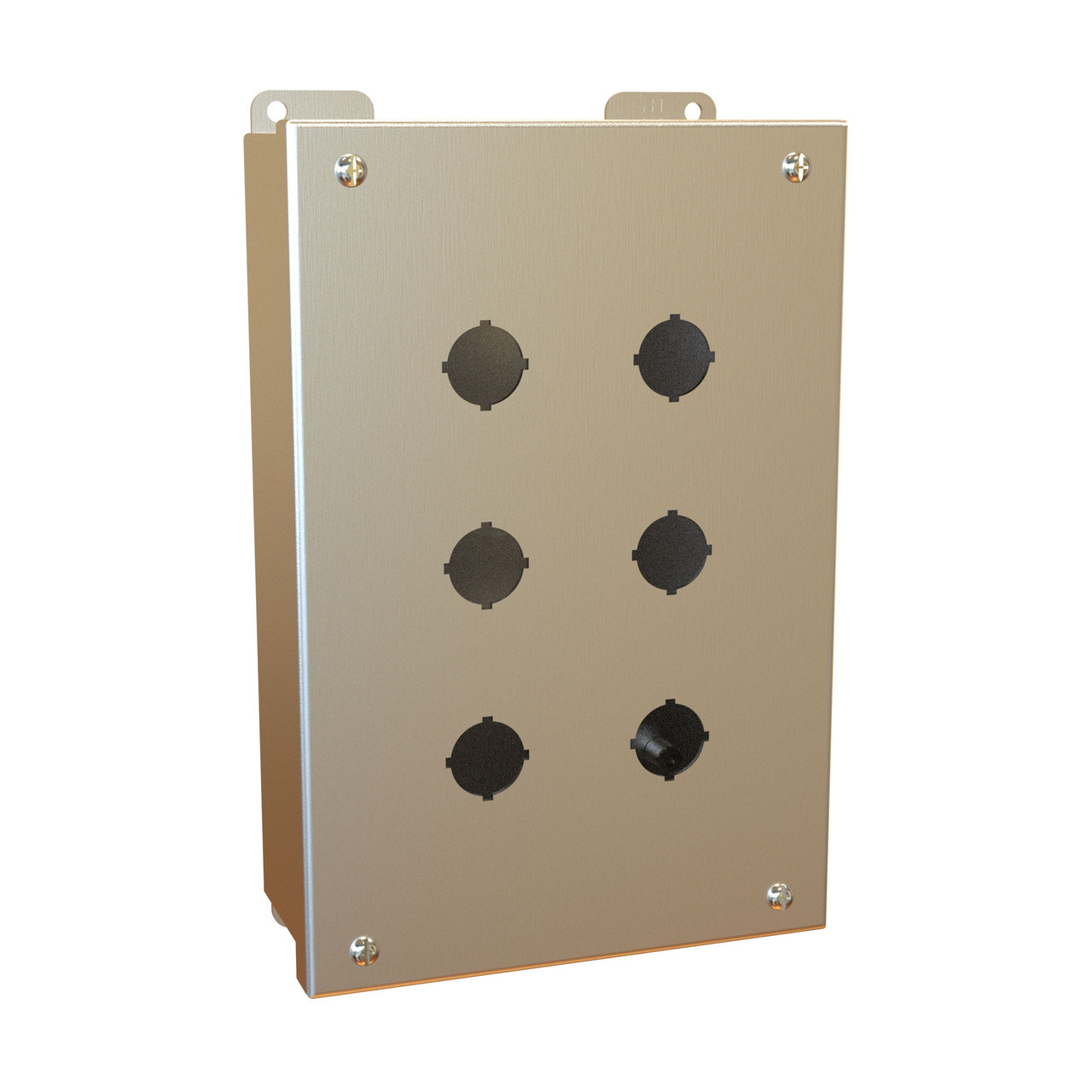

The Hammond Manufacturing 1435MS16H is a compact 9.5 x 6.25 x 3 in NEMA 4, 4X pushbutton enclosure, formed from 14 gauge 316 stainless steel and supplied with a smooth brushed finish.
| Category | |
| Manufacturer | Hammond |
| Holes | 6 |
| Button Size | 22.5 mm |
| Material | Stainless Steel |
| Stainless Grade | 316 |
| NEMA Type Rating | 4, 4X |
| IP Rating | IP66 |
| Enclosure Height | 9.50 in (241 mm) |
| Enclosure Width | 6.25 in (159 mm) |
| Enclosure Depth | 3.00 in (76 mm) |
| Size | 9.5 x 6.25 x 3 in (241 x 159 x 76 mm) (L x W x H) |
| Panel Included | Yes |
| Body Gauge | 14 |
| Finish | Natural stainless steel with a smooth brushed finish. |
| Color | Natural |
| Standards | UL 508A Type 4 and 4X, CSA Type 4 and 4X |
