To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1435MC |
| Description | Pushbutton Enclosure; 3; 22.5 mm; NEMA 12; 8x3.25x2.75 in; Mild Steel |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

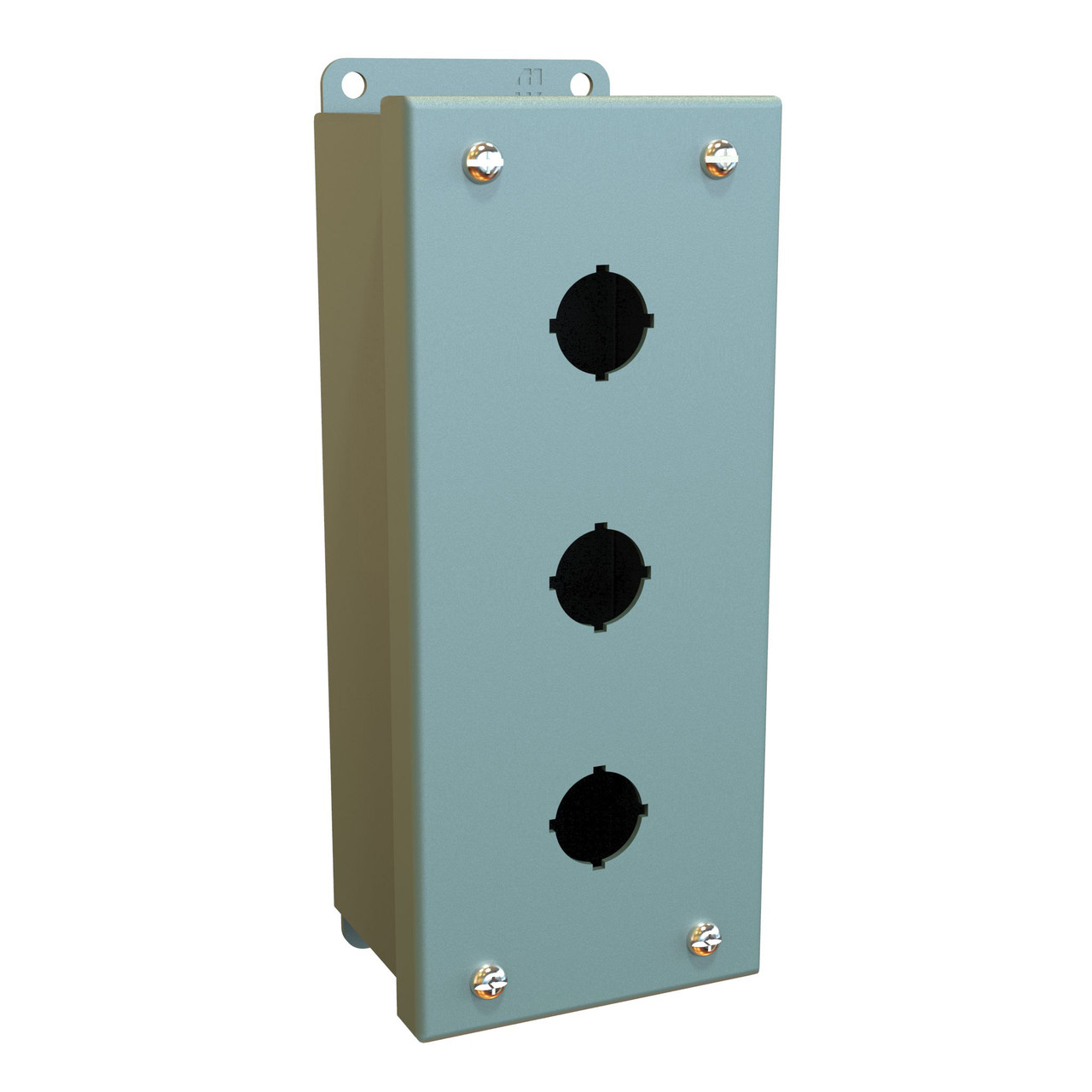

The Hammond Manufacturing 1435MC is a compact 8 x 3.25 x 2.75 in NEMA 12 pushbutton enclosure, formed from 14 gauge mild steel and finished in ANSI 61 Gray.
| Category | |
| Manufacturer | Hammond |
| Holes | 3 |
| Button Size | 22.5 mm |
| Material | Mild Steel |
| NEMA Type Rating | 12 |
| IP Rating | IP54 |
| Enclosure Height | 8.00 in (203 mm) |
| Enclosure Width | 3.25 in (83 mm) |
| Enclosure Depth | 2.75 in (70 mm) |
| Size | 8 x 3.25 x 2.75 in (203 x 83 x 70 mm) (L x W x H) |
| Panel Included | Yes |
| Body Gauge | 14 |
| Finish | Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating. |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 12 and 13, CSA Type 12 and 13 |
