Product Description
Description: Power Transformers • Type: Laminated Core • Voltage - Primary: 115V, 230V • Voltage - Secondary (Full Load): Parallel 5V, Series 10V • Current - Output (Max): Parallel 500mA, Series 250mA • Primary Winding(s): Dual • Secondary Winding(s): Dual • Center Tap: No • Power - Max: 2.4VA • Mounting Type: Through Hole • : PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Type | Laminated Core |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 5V, Series 10V |
| Current - Output (Max) | Parallel 500mA, Series 250mA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 2.4VA |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Size / Dimension | 34.93mm L x 28.58mm W |
| Height - Seated (Max) | 30.15mm |
| Voltage - Isolation | 2500Vrms |
| Weight | 0.25 lb (113.4 g) |
| Series Features |

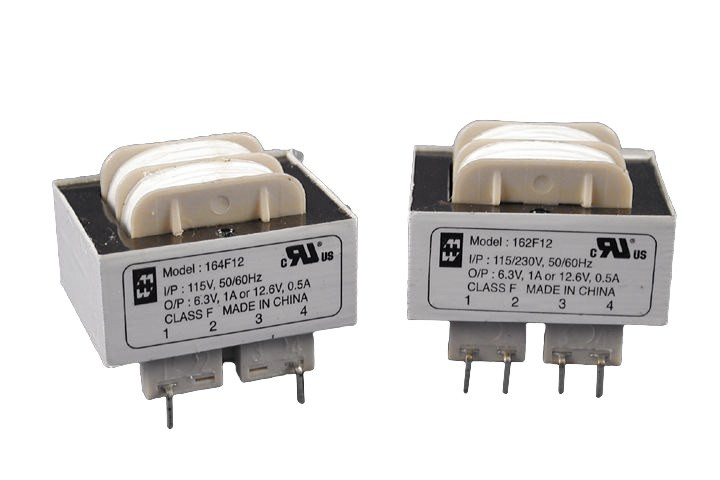

| Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA 162-164 Series |
