To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1140-DB-A |
| Description | Impedance Matching Transformer; 200K:1.5K; 12:1; +22 dBu; Chassis Mount |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

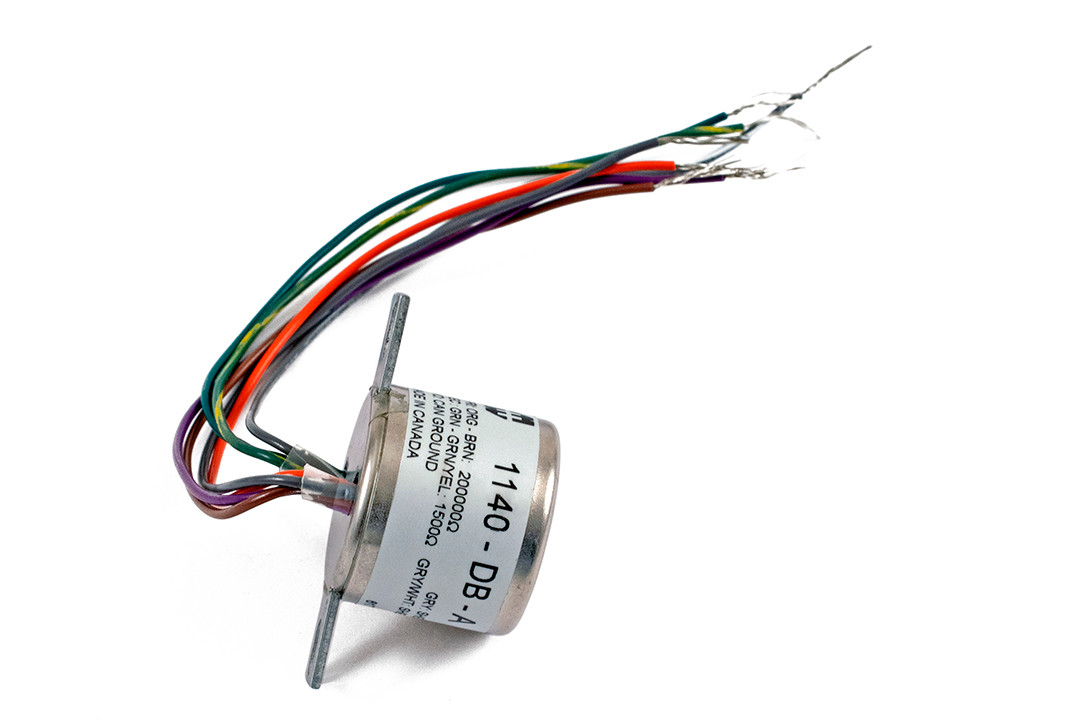

The Hammond Manufacturing 1140-DB-A is an impedance matching transformer.
| Category | |
| Manufacturer | Hammond |
| Product Type | Impedance Matching Transformer |
| Impedance Ratio | 200K:1.5K |
| Turns Ratio | 12:1 |
| Frequency Response | -0.07 dB/-0.07 dB |
| Max Input Level | +22 dBu |
| THD | 0.02% |
| Construction | Chassis Mount |
